10-2626-01 Technical Specifications

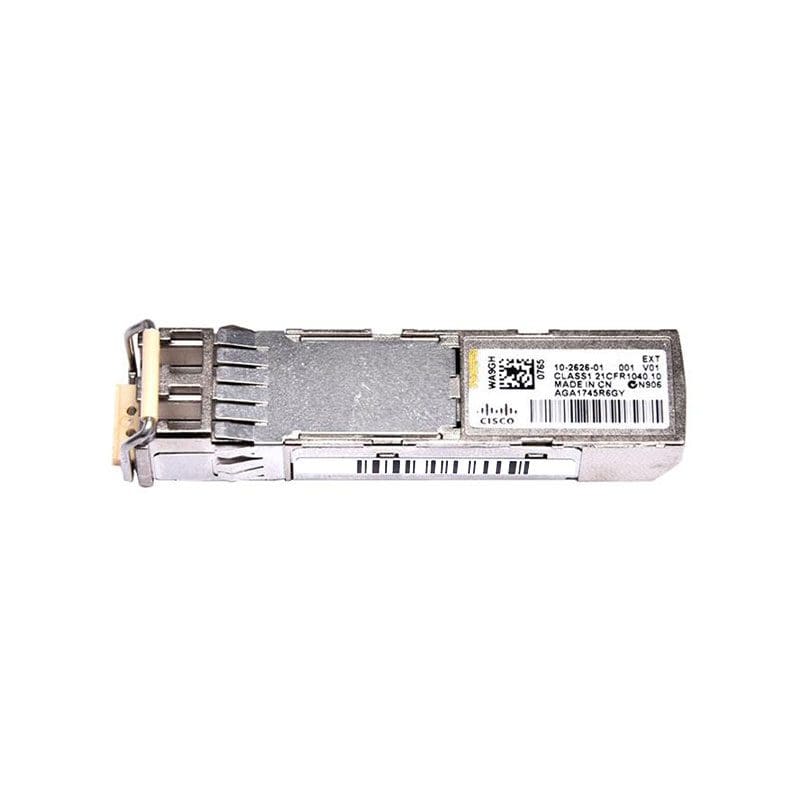

Cisco 1000Base SX SFP MMF Transceiver 850NM/w Dom
Product Description : CISCO Sfp (mini-gbic) Transceiver Module
Device Type : Sfp (mini-gbic) Transceiver Module – Lc/pc Multi-mode
Enclosure Type : Plug-in Module
Dimensions (wxdxh) : 0.5 In X 2.2 In X 0.4 In
Weight : 2.6 Oz
Cabling Type : 1000base-sx
Data Transfer Rate : 1 Gbps
Optical Wave Length : 850 Nm
Data Link Protocol : Gigabit Ethernet
Max Transfer Distance : 1800 Ft
Compliant Standards : Ieee 802.3z, Ieee 802.3ah , Laser Class 1, Iec 60825-1
Expansion / Connectivity
Interfaces1 x Ethernet 1000Base-SX – LC/PC multi-mode x 2
Compatible Slots1 x SFP (mini-GBIC)
Miscellaneous
Compliant StandardsLaser Class 1, IEC 60825-1
Dimensions & Weight
Width: 1.34 cm
Depth: 5.65 cm
Height: 0.85 cm
Weight: 75 g
Environmental Parameters
Min Operating Temperature: -5 °C
Max Operating Temperature: 85 °C
