16803 Technical Specifications

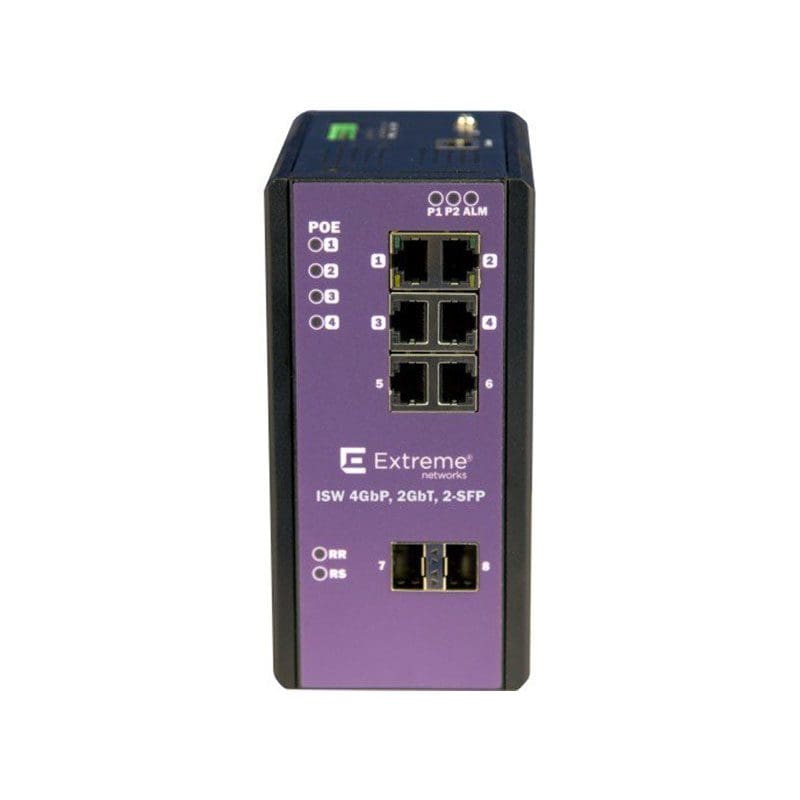

Extreme Networks ISW 4GBP, 2GBT, 2-SFP Ethernet Switch
Manufacturer: Extreme Networks, Inc
Manufacturer Part Number
Brand Name: Extreme Networks
Product Model: ISW 4GBP, 2GBT, 2-SFP
Product Name: ISW 4GBP, 2GBT, 2-SFP Ethernet Switch
Product Type: Ethernet Switch
Total Number of Network Ports: 6
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 6 x Gigabit Ethernet Network , 2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair , Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 1000Base-X
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP+ Slots: 2
Form Factor: Wall Mountable, DIN Rail Mountable
Height: 6.1″
Width: 3″
Depth: 5″
Weight (Approximate): 3.11 lb
