Refurbished 399154-001 Technical Specifications

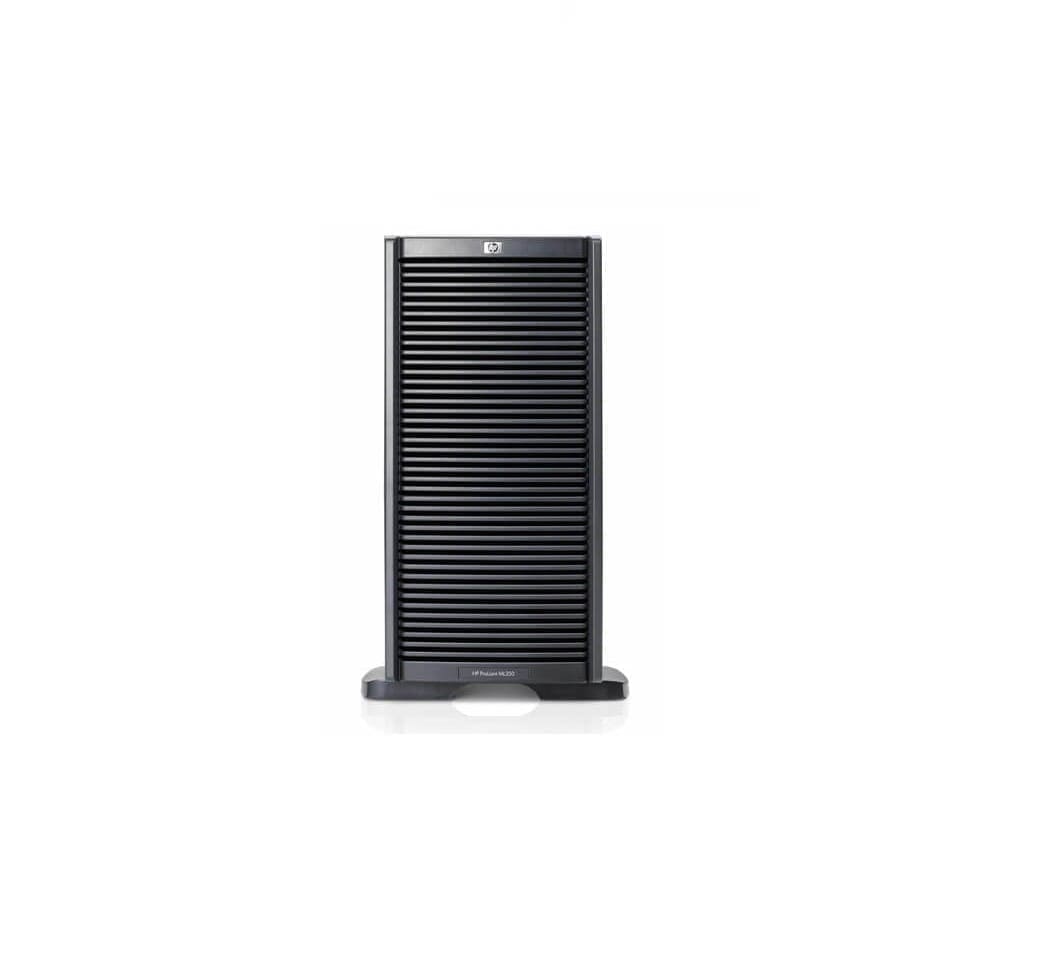

HP Proliant Ml150 G3 1 X Intel Xeon 5050 Dc 3.0GHz 512MB Ram Sata Hs 48x Cd-ROM Gigabit Ethernet 5u Tower Server.
General Information:
Manufacturer: Hewlett-Packard
Part Number: 399154-001
Product Name: Hp Proliant Ml150 G3 Server
Processor & Chipset:
Processor Type: Intel Xeon 5050 Dual-Core (2 Core) / 3.0 Ghz
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Cache Memory: 4 Mb L2 Cache
Chipset Type: Intel 5000v
Fsb: 1066 Mhz
Memory:
Installed Ram Size: 512 Mb / 8 Gb (Max)
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Dimm 240-Pin
Features: Buffered
Storage:
Hard Drive: Not Included
Server Storage Bays: Hot Swap 3.5
Optical Storage : 48x Cd-Rom
Storage Controller:
Storage Controller Type: Raid
Form Factor: Integrated
Installed Qty: 1
Controller Interface Type: Serial Ata-150
Raid Level: Raid 0, Raid 1
Display & Graphics:
Form Factor: Integrated
Video Memory : Sram
Installed Size: 2 Mb
Network & Communication:
Type: Network Adapter – Integrated
Interface Type: Pci
General Information:
Manufacturer: Hewlett-Packard
Part Number: 399154-001
Product Name: Hp Proliant Ml150 G3 Server
Processor & Chipset:
Processor Type: Intel Xeon 5050 Dual-Core / 3.0 Ghz
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Cache Memory: 4 Mb L2 Cache
Chipset Type: Intel 5000v
Fsb: 1066 Mhz
Memory:
Installed Ram Size: 512 Mb / 8 Gb (Max)
Technology: Ddr Ii Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Dimm 240-Pin
Features: Buffered
Storage:
Hard Drive: Not Included
Server Storage Bays: Hot-Swap 3.5
Optical Storage : 48x Cd-Rom
Storage Controller:
Storage Controller Type: Raid
Form Factor: Integrated
Installed Qty: 1
Controller Interface Type: Serial Ata-150
Raid Level: Raid 0, Raid 1
Display & Graphics:
Form Factor: Integrated
Video Memory : Sram
Installed Size: 2 Mb
Network & Communication:
Type: Network Adapter – Integrated
Interface Type: Pci
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.1x, Ieee 802.1ad
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(S): Hp Nc7781
Features (Aa): Wake On Lan (Wol)
Expansion & Connectivity :
Expansion Bays Total (Free):
2 ( 1 ) X Front Accessible – 5.25 X 1/2h
6 ( 6 ) X Hot-Swap – 3.5 X 1/3h
nterfaces:
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15)
1 X Network – Ethernet 10base-T/100base-Tx/1000base
3 X 4-Pin Type A Usb 2.0 – Usb Rear
2 X 4-Pin Type A Usb 2.0 – Usb Front
1 X Rj-45 Network
Power Description:
Device Type: Power Supply
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 650 Watt
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.1x, Ieee 802.1ad
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(S): Hp Nc7781
Features (Aa): Wake On Lan (Wol)
Expansion & Connectivity :
Expansion Bays Total (Free):
2 ( 1 ) X Front Accessible – 5.25 X 1/2h
6 ( 6 ) X Hot-Swap – 3.5 X 1/3h
Interfaces:
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15)
1 X Network – Ethernet 10base-T/100base-Tx/1000base
3 X 4-Pin Type A Usb 2.0 – Usb Rear
2 X 4-Pin Type A Usb 2.0 – Usb Front
1 X Rj-45 Network
Power Description:
Device Type: Power Supply
Voltage Required: Ac 120/230 V ( 50/60
