7X02A01ZNA Technical Specifications

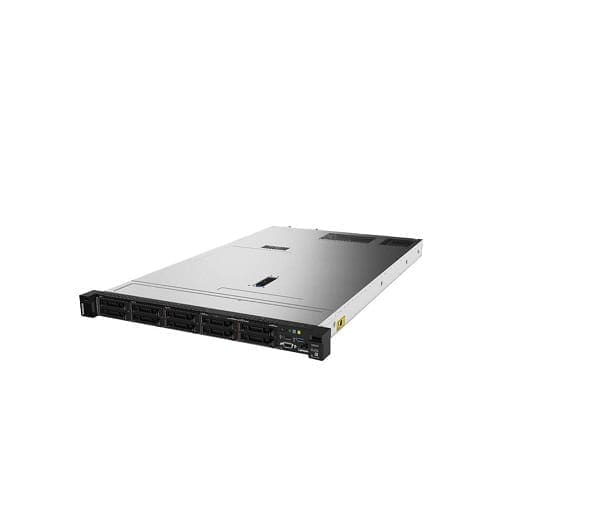

Lenovo Thinksystem SR630,1XXEON Gold
General Information
Product Name Thinksystem SR630,1XXEON Gold 6142 16C/2.6GHZ/22MB/150w/DDR4-2666,1X32GB Rdimm
Product Line ThinkSystem
Product Series SR630
Product Model 7X02A01ZNA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Memory
Standard Memory 32 GB
Memory Technology TruDDR4
Number of Total Memory Slots 24
Number of Occupied Memory Slots 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 750 W
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 6142
Processor Core Hexadeca-core (16 Core)
Processor Speed 2.60 GHz
