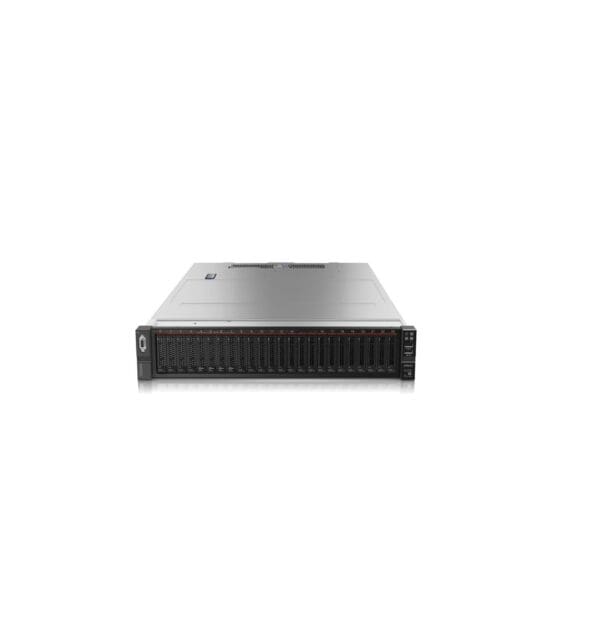

7X06A09NNA Lenovo Thinksystem SR650 for MS SQL Server

7X06A09NNA Overview

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/ email, and business analytics and big data.


Buy Now
Availability: In Stock

7X06A09NNA Technical Specifications

Lenovo Thinksystem SR650 for MS SQL Server

General Information
Product Name Thinksystem SR650 for MS SQL Server 44TB DWFT R2-2x Intel Xeon Platinum 8176,768GB
Product Line ThinkSystem
Product Series SR650
Product Model 7X06A09NNA
Product Type Server
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Standard Memory 768 GB
Maximum Memory 768 GB
Memory Technology TruDDR4
Number of Total Memory Slots 24
Number of Occupied Memory Slots 24
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1100 W
Redundant Power Supply Yes
Total Solid State Drive Capacity 19.52 TB
Solid State Drive Interface PCI Express
Solid State Drive Configuration 4 x 3.84 TB
2 x 480 GB

4 x 800 GB

Optical Drive Type No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Platinum
Processor Model 8176
Processor Core Octacosa-core (28 Core)
Processor Speed 2.10 GHz
