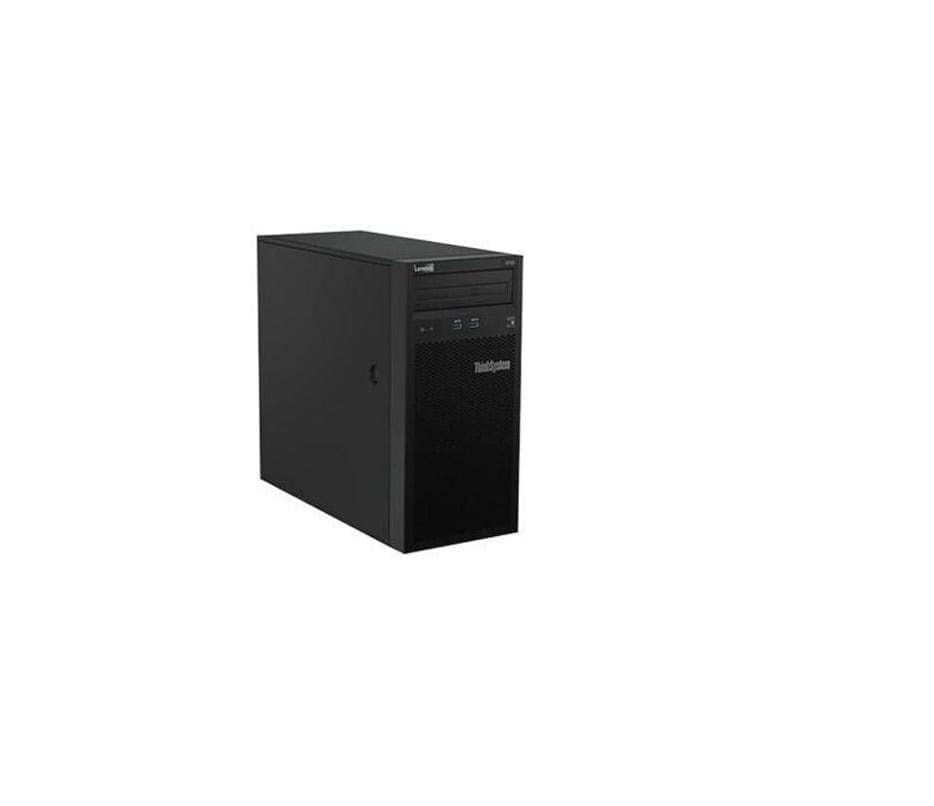

7X10A0ASNA Lenovo ThinkSystem ST550 – tower – Xeon Bronze

7X10A0ASNA Overview

The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. It is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices.


Buy Now
Availability: In Stock

7X10A0ASNA Technical Specifications

Lenovo ThinkSystem ST550 – tower – Xeon Bronze

Clock Speed :1.9 GHz
Installed Qty :1
Manufacturer :Intel
Max Supported Qty :2
Number of Cores :6-core
Processor Number :3204
Server Scalability :2-way
Type :Xeon Bronze
Audio Input
Type :None
Bay Provided
Form Factor :3.5″
Free Qty :8
Total Qty :8
Form Factor :5.25″ x 1/2H
Free Qty :2
Total Qty :2
Cache Memory
Installed Size :8.25 MB
Installed Size :8.25
Per Processor Size :8.25 MB
Per Processor Size :8.25
Type :None.
Brand :Lenovo
Country Kits :North America
Manufacturer :Lenovo System X
Model :7X10
Packaged Quantity :1
Product Line :Lenovo ThinkSystem ST550
Interface Provided
Connector Type :RJ-45
Type :Management
Location :1 front, 2 rear, 1 internal
Qty :4
Type :USB 3.0
Location :1 front, 4 rear
Qty :5
Type :USB 2.0
Qty :1
Type :VGA
Qty :2
Type :LAN (Gigabit Ethernet)
Color Category :Black
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR 32 Class A, BSMI CNS 13438 Class A, BSMI CNS 14336-1, BSMI CNS 15663, CB, CCC, CISPR 32 Class A, CSA C22.2 No. 60950-1, EK1-ITB2000, EN 55032 Class A, EN 60950-1, EN 62368-1:2014, EN55024, EN61000-3-2, EN61000-3-3, Energy-Related Products (ErP) Lot 3, FCC Part 15 A, GB 17625.1, GB 4943.1, GB 9254 Class A, ICES-003 issue 6 Class A, IEC 60950-1, IEC60950-1, JESL, KN32 Class A, KN35, NOM-019, RoHS, TR CU 004/2011, TR CU 020/2011, TUV GS, UL 60950-1, VCCI Class A
Height (Rack Units) :4
Theft/Intrusion Protection :Chassis intrusion switch
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Intel X722
Ethernet Ports :2 x Gigabit Ethernet
Features :Wake on LAN (WoL)
Remote Management Controller :XClarity Controller (XCC) Enterprise
Remote Management Protocol :CIM, IPMI 2.0, SNMP 3
OS Provided
Type :No operating system
Power Device
80 PLUS Certification :80 PLUS Platinum
Frequency Required :50/60 Hz
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :750 Watt
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply – hot-plug
Type :None
Configuration Features :1 x 16 GB
Data Integrity Check :ECC
Empty Slots :11
Features :Memory Mirroring, Memory Sparing, Mixing of different types of memory modules is not supported, Registered, Slots 7 – 12 are available in two-processor configuration only
Form Factor :DIMM 288-pin
Installed Size :16 GB
Installed Size :16
Max Supported Size :384 GB
Max Supported Size :384
Memory Speed :2133 MHz
Rated Memory Speed :2666 MHz
Slots Qty :12
Technology :DDR4 SDRAM
