7X19A018NA Technical Specifications

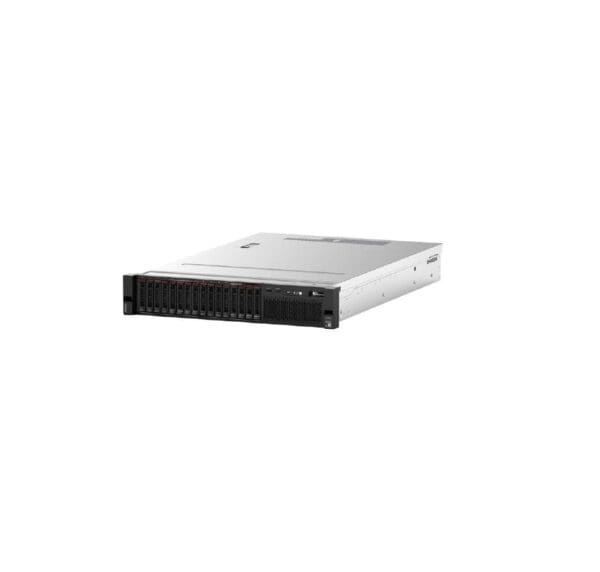

Lenovo Thinksystem SR850 5118X4 32GX4
General Information
Product Name Thinksystem SR850 5118X4 32GX4
Product Line ThinkSystem
Product Series SR850
Product Model 7X19A018NA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
I/O Expansions
Number of Total Expansion Bays 8
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Memory
Standard Memory 128 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 48
Number of Occupied Memory Slots 4
Network & Communication
Ethernet Technology Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1100 W
Redundant Power Supply Yes
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 4
Number of Processors Installed 4
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 5118
Processor Core Dodeca-core (12 Core)
Processor Speed 2.30 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 2U
Height 3.4″
Width 19″
Depth 30.1″
