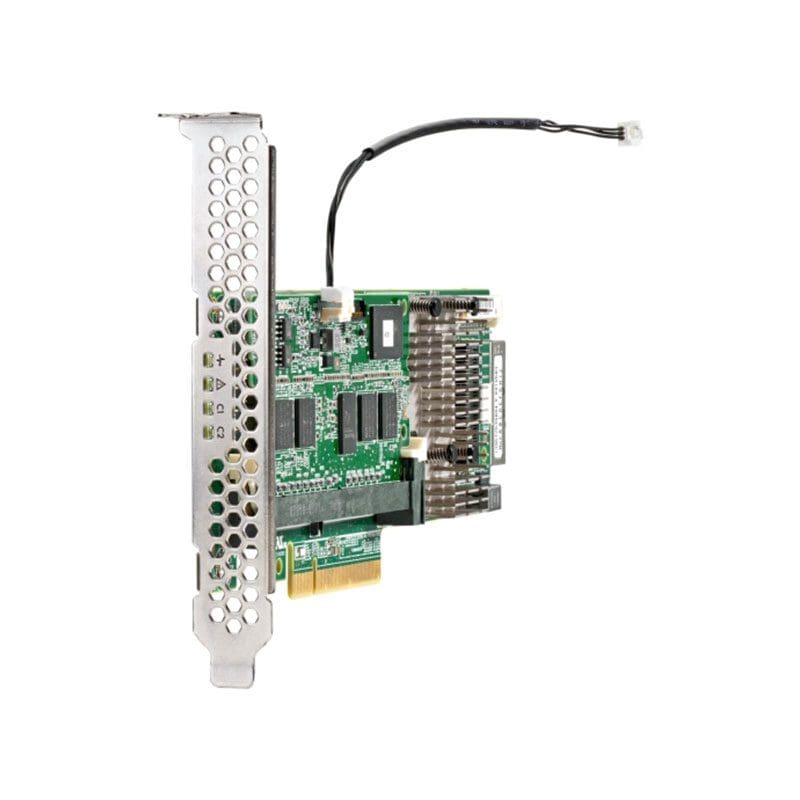

820834-B21 HP Smart Array PCI Express Controller Card FBWC Kit

820834-B21 Technical Specifications

HP Smart Array P440 2GB Cache Single Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 RAID 0/1/5/6/10/50/60/1ADM/10ADM Controller Card FBWC Kit

Manufacturer Part Number 820834-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 6
60
5
50
1
10
1 ADM
10 ADM
0
Data Backup Type Flash Backed Cache
Memory
Cache Memory 2 GB
Interfaces/Ports
Total Number of SAS Ports 1
Number of SAS Ports (Internal) 1
Physical Characteristics
Height 0.6″
Width 2.7″
Depth 6.6″
Form Factor Plug-in Card
