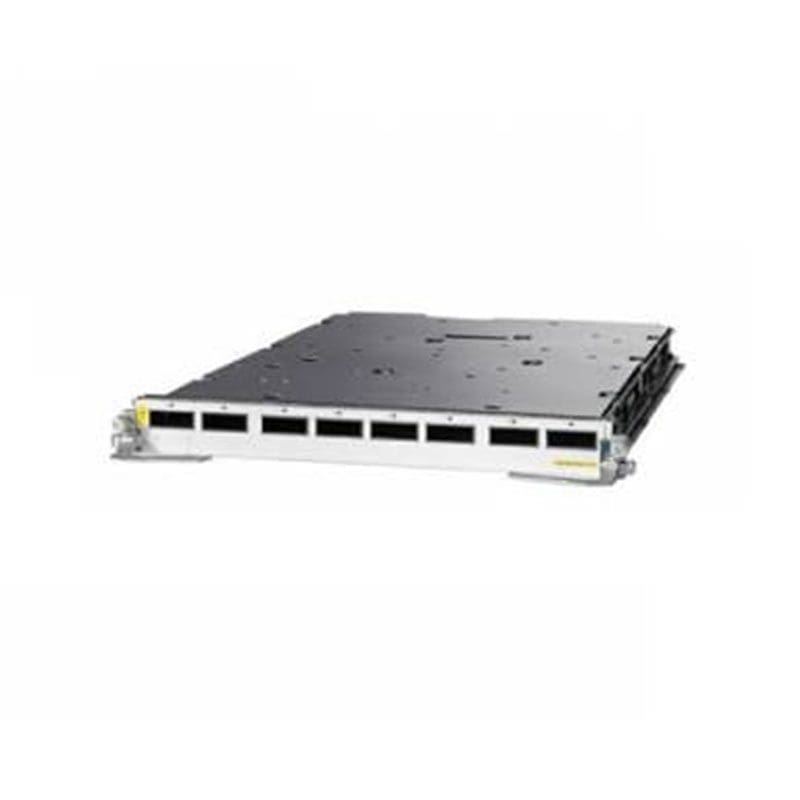

Refurbished A99-8X100GE-CM Technical Specification
Cisco 7-Fabric Support Expansion Module
Product Description Cisco Line Card with 7-Fabric Support – expansion module – 100 Gigabit CPAK x 8
Device Type Expansion module
Form Factor Plug-in module
Ports 100 Gigabit CPAK x 8
Dimensions (WxDxH) 1.6 in x 22 in x 14.5 in
Weight 28 lbs
Data Link Protocol 100 Gigabit Ethernet
Data Transfer Rate 100 Gbps
Compliant Standards IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, ITU-T Y.1731
System Requirements Cisco IOS XR 5.3.1
Pricing Type Remanufactured – Consumption Model
Designed For ASR 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 100 Gigabit CPAK x 8
Connectivity Technology Wired
Data Link Protocol 100 Gigabit Ethernet
Data Transfer Rate 100 Gbps
Features Flow control, full duplex capability, MPLS support, Quality of Service (QoS), NetFlow, Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, ITU-T Y.1731
Expansion / Connectivity
Interfaces 8 x 100Gb Ethernet – CPAK
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, IEC 60825, VCCI Class A, EN 300 386
Pricing Type Remanufactured – Consumption Model
Software / System Requirements
OS Required Cisco IOS XR 5.3.1
Dimensions & Weight
Width 1.6 in
Depth 22 in
Height 14.5 in
Weight 28 lbs
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
Compatibility Information
Designed For Cisco ASR 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
