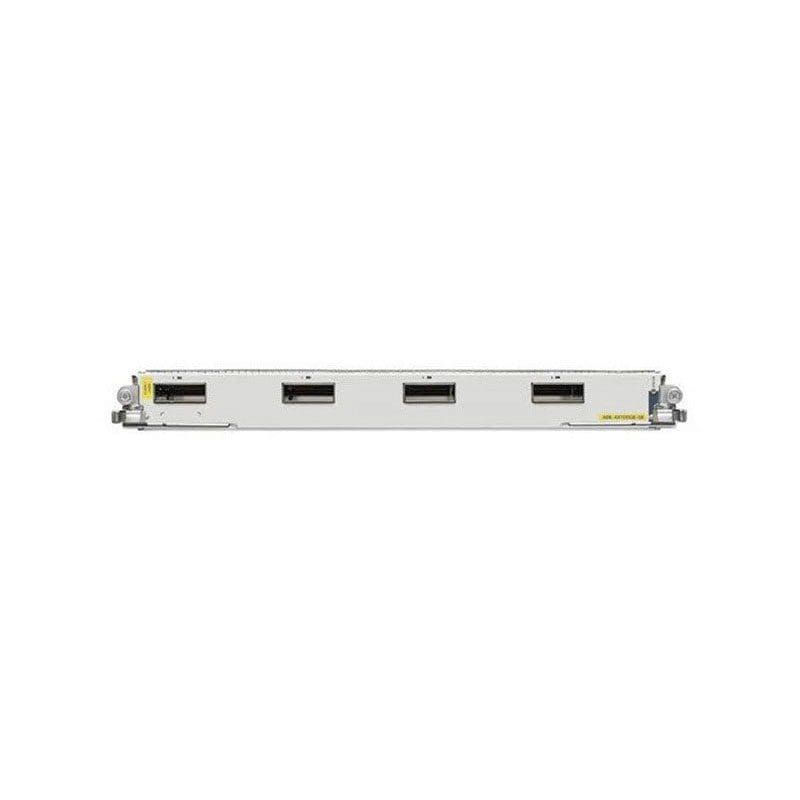

Refurbished A9K-4X100GE-TR Technical Specification
Cisco ASR 9000 Series Packet Transport
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASR 9000 Series
Model :Packet Transport Optimized Line Card
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :100 GBps
Features :Flow control, Full duplex capability, MPLS support, NetFlow, Quality of Service (QoS), Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards :IEEE 802.1ag, IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3x, ITU-T Y.1731
Ports
Qty :4
Type :100 Gigabit CPAK
Interface Provided
Interfaces :4 x 100Gb Ethernet – CPAK
Miscellaneous
Color Category :Silver
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22 Class A, CSA C22.2 No. 60950-1, EN 300 386, EN 60825, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, FCC Class A certified, FDA, ICES-003 Class A, IEC 60825, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :1.6 inch
Depth :22 inch
Height :14.5 inch
Weight :28 lbs
Service & Support
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85%
Compatibility
Compatible With :Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9904, 9912, 9922
