AIR-AP1542I-B-K9 Technical Specifications

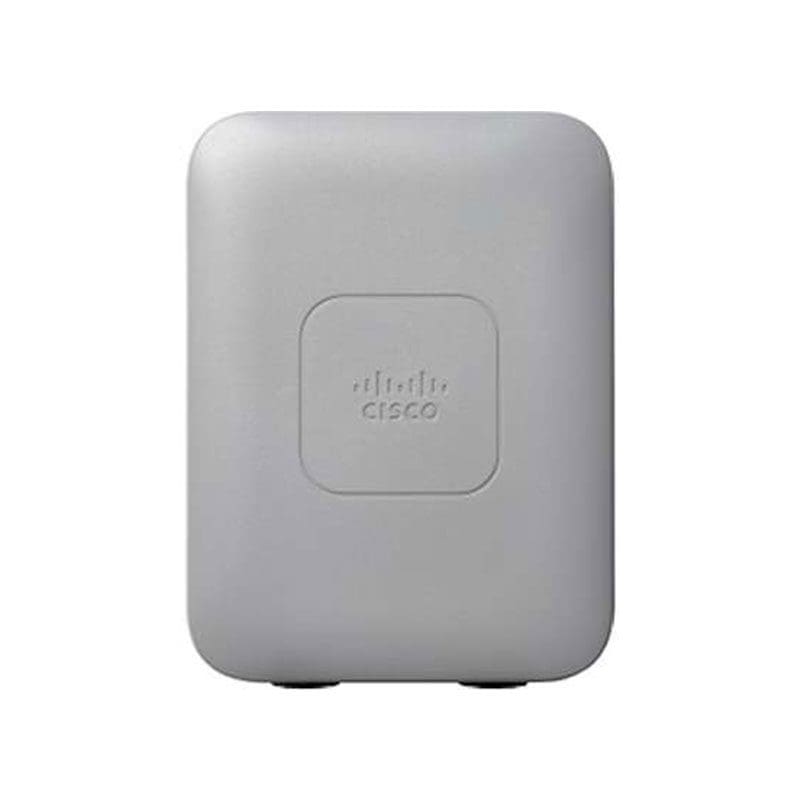

Cisco Aironet 1542I Wireless Access Point
Manufacturer
CISCO DS HARDWARE DIRECT
Brand
Cisco
Product Line
Cisco Aironet
Model
1542I
Antenna
Antenna Form Factor
Internal
Gain Level
5 DBi
Directivity
Omni-directional
Antenna Qty
2
Chassis
Ruggedized Design
Outdoor
Capacity
Capacity
Spatial streams: 2
Networking
Type
Wireless access point
Form Factor
External
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol
802.11a/b/g/n/ac Wave 2
Network / Transport Protocol
IPSec, L2TP
Wi-Fi Bands
2.4 GHz, 5 GHz
Power Over Ethernet (PoE)
PoE+
Features
2×2 MU-MIMO technology, 802.1x authentication, Beamforming technology, Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), MAC address filtering, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Reset button, VPN passthrough
Compliant Standards
IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, X.509
Interface Provided
Interfaces
1 x 1000Base-T (PoE+) – RJ-45, 1 x console – RJ-45
Power Device
Power Consumption Operational
13 watt
Miscellaneous
Color Category
White
Encryption Algorithm
AES, LEAP, PEAP, TLS, TTLS, WPA2
Authentication Method
Extensible Authentication Protocol (EAP), X.509 certificates
Compliant Standards
ANSI / IEEE 587 C62.41, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268.2003, CAN/CSA C22.2 No. 60950 Second Edition, EN 300 328, EN 301 489-1, EN 301 489-17, EN 301 893, EN 301.489-17, EN 60068-2-5, EN 60950, EN 60950-1 Second Edition, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, FCC OET Bulletin 65c, FCC Part 15.107, FCC Part 15.109, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60529, IEC 60950-1 Second Edition, IP67, MIL-STD-810, NEMA 250-2008, RSS-102, RSS-210, UL 60950 Second Edition, X.509
Dimensions & Weight
Width
5.9 inch
Depth
7.9 inch
Height
2.4 inch
Weight
2.76 lbs
Service & Support
Type
1-year warranty
Service & Support Details
Service & Support
Limited warranty – advance parts replacement – 1 year – response time: 10 days
Environmental Parameters
Min Operating Temperature
-40 degree Fahrenheit
Max Operating Temperature
149 degree Fahrenheit
