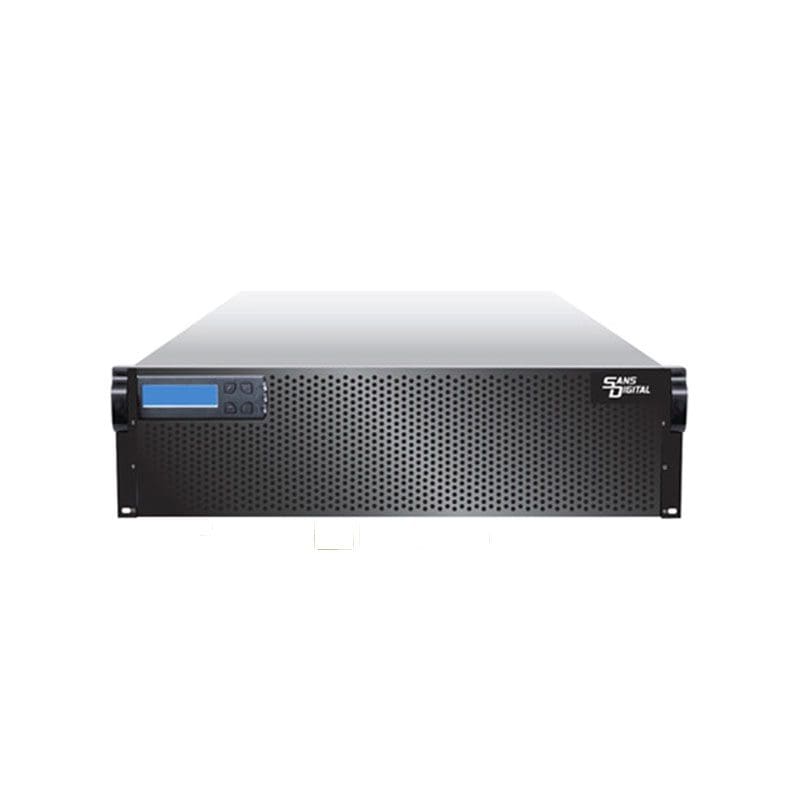

AR316IS Technical Specifications
Sans 3U 16 Bay 4 GbE iSCSI to SAS/SATA RAID 6 Storage Redundant Controller
Manufacturer Part Number AR316IS
Brand Name Sans Digital
Product Type SAN Storage System
Storage
Number of Hard Drives Supported 16
Total Hard Drive Capacity Supported 48 TB
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays 16
Number of 2.5″/3.5″ Bays 16
Controllers
Controller Type Serial ATA
Serial Attached SCSI (SAS)
RAID Supported Yes
RAID Levels 0, 1, 3, 5, 6, 30, 50, 60, 0+1, JBOD
1
0
JBOD
3
5
6
3+0
50
60
Management & Protocols
Protocols iSCSI
iSNS
DHCP
SNMP
LACP
HTTP
HTTPS
SSH
Physical Characteristics
Height 5.5″
Width 19″
Depth 21″
Form Factor Rack-mountable
Rack Height 3U
Weight (Approximate) 47 lb
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
