ASR-5405Z Technical Specifications

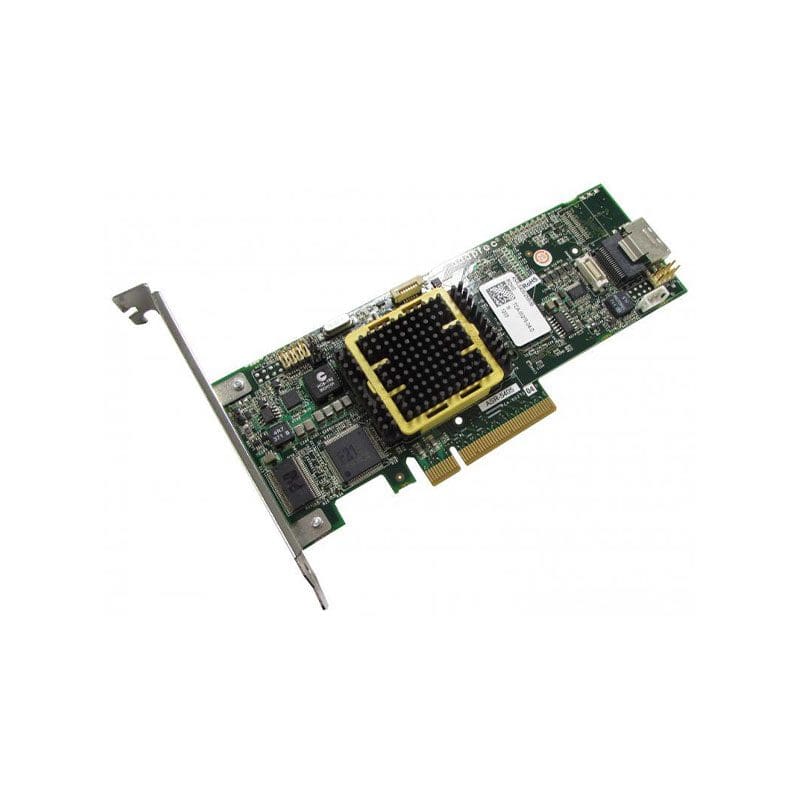

ADAPTEC 5z Pci Express X8 5405z 4-port Sas Raid Controller Card With Battery And Long Bracket
Device Type : Storage Controller(raid)-plug-in Card-low Profile
Interface Type : Pci Express X8
Controller Interface Type: Serial Ata-300 / Sas
Data Transfer Rate : 300 Mbps
Buffer Size : 512 Mb
Supported Devices : Hard Drive, Disk Array (raid)
Channel Qty : 4
Processor : 1.2 Ghz
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Jbod, Raid 1e, Raid 5ee, Raid 60
Expansion / Connectivity
Interfaces/ports : 1 X Sff-8087 – Mini-sas Internal
Compatible Slots : 1 X Pci Express X8 – Low-profile
