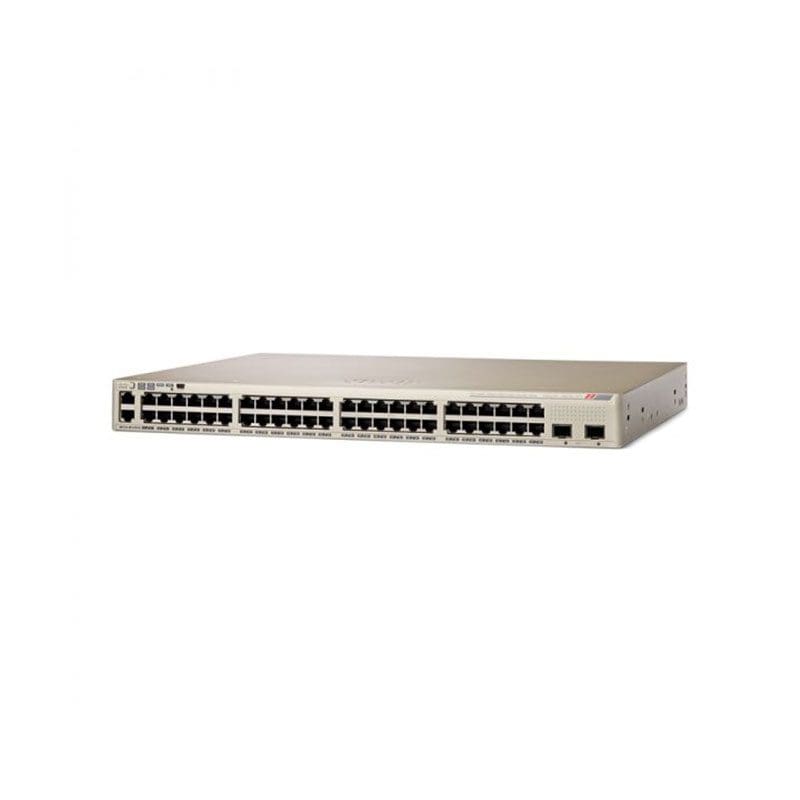

Refurbished C6800IA-48TD Cisco Catalyst 6800ia switch managed
Refurbished C6800IA-48TD Overview
The Cisco Catalyst 6800ia solution offers network administrators the ability to look at buildings in a campus network as a single switch. The entire building can be viewed as a single management entity. The Cisco Catalyst 6800ia solution is managed by the parent Cisco Catalyst 6500/6800 switch. The Cisco Catalyst 6800ia solution offers feature consistency across the access and distribution layers of the campus Ethernet network. The Cisco Catalyst 6800ia is an extension of the Cisco Catalyst 6500/6800 parent switch. The Cisco Catalyst 6800ia solution is very resilient with its support of multichassis EtherChannel and stacking. The Cisco Catalyst 6800ia solution does not use Spanning Tree Protocol in the links between the Cisco Catalyst 6800ia switch and the Cisco Catalyst 6500/6800 parent switch. The Cisco Catalyst 6800ia solution supports Virtual Switching System Cisco Catalyst 6800ia switches do not perform any local packet forwarding. All traffic originating from host ports (downlink ports) of a Cisco Catalyst 6800ia switch will be sent to an Instant Access parent, which makes all the switching and forwarding decisions for the traffic to be forwarded to the destination.
$1,330
Buy NowRefurbished C6800IA-48TD Technical Specifications
Cisco Catalyst 6800ia switch managed
Manufacturer Cisco Systems, Inc
Manufacturer Part Number C6800IA-48TD
Brand Name Cisco
Product Line Catalyst
Product Series 6800ia
Product Model C6800IA-48TD
Product Name Catalyst C6800IA-48TD Ethernet Switch
Product Type Ethernet Switch
Technical Information−
Interfaces/Ports
Total Number of Network Ports 48
Token Ring Port No
LRE Port No
Uplink Port Yes
Bypass No
Modular No
Management Port Yes
Number of Network (RJ-45) Ports 48
Port/Expansion Slot Details 48 x Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 5
Ethernet Technology Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Network & Communication
Layer Supported 2
Management & Protocols
Manageable Yes
Memory
Standard Memory 512 MB
Memory Technology DRAM
Flash Memory 128 MB
Power Description
PoE (RJ-45) Port No
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Form Factor Rack-mountable
Height 1.8″
Width 17.5″
Depth 11″
Weight (Approximate) 9.66 lb
