C9200CX-8P-2X2G-A Technical Specifications

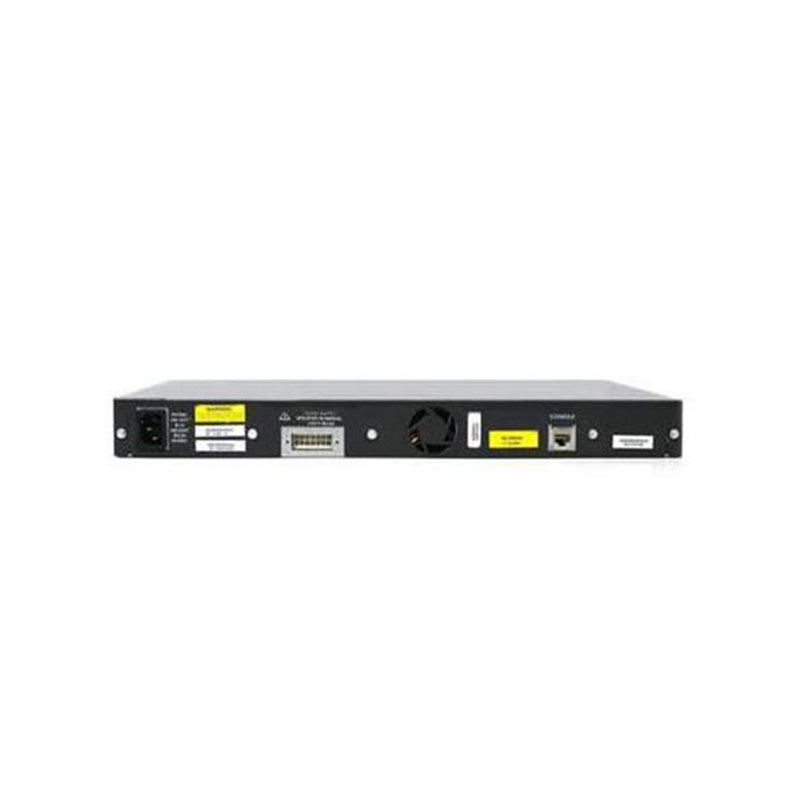

Cisco 10x RJ45 PoE+ 2x SFP+ Uplink GbE Switch
Part Number: C9200CX-8P-2X2G-A
Series: Cisco Catalyst 9200CX Series
Type: Layer 3 Managed Compact PoE+ Switch
Total Ports: 12
Gigabit Ethernet Ports: 8 x 10/100/1000 RJ-45 PoE+
Additional Ports: 2 x 1G RJ-45
Uplink Ports: 2 x 1G/10G SFP+
Switching Capacity: 80 Gbps
Forwarding Rate: 59.52 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
PoE Standard: IEEE 802.3af/at (PoE+)
PoE Budget: 240W max
Stacking Capability: Not supported (standalone only)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing Protocols: IPv4/IPv6 Static Routing, RIP, EIGRP, OSPF
Link Aggregation: IEEE 802.3ad LACP
Quality of Service: 8 Queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, Port Security, DHCP Snooping, TrustSec
Management: Web UI, CLI, SNMP v1/v2c/v3, NetFlow, Syslog
