CD8069504214302 Technical Specifications

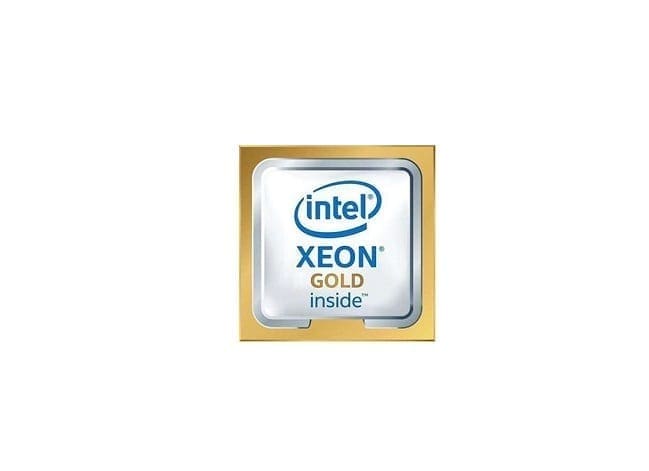

Intel Xeon Gold 5217 8-Core 3.00GHz 11MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504214302
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 5217
Processor Code Name Cascade Lake
Core Stepping L1
Manufacturing Technology 14 nm
# of Cores 8
# of Threads 16
Clock Speed 3.00 GHz
Max Turbo Frequency 3.70 GHz
L3 Cache Size 11 MB
# of UPI Links 2
Thermal Power 115 Watts
Max Memory Size 1 TB
Memory Types DDR4-2667
Maximum Memory Speed 2667 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 79 °C
Embedded Options Available No
Scalability 4S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
