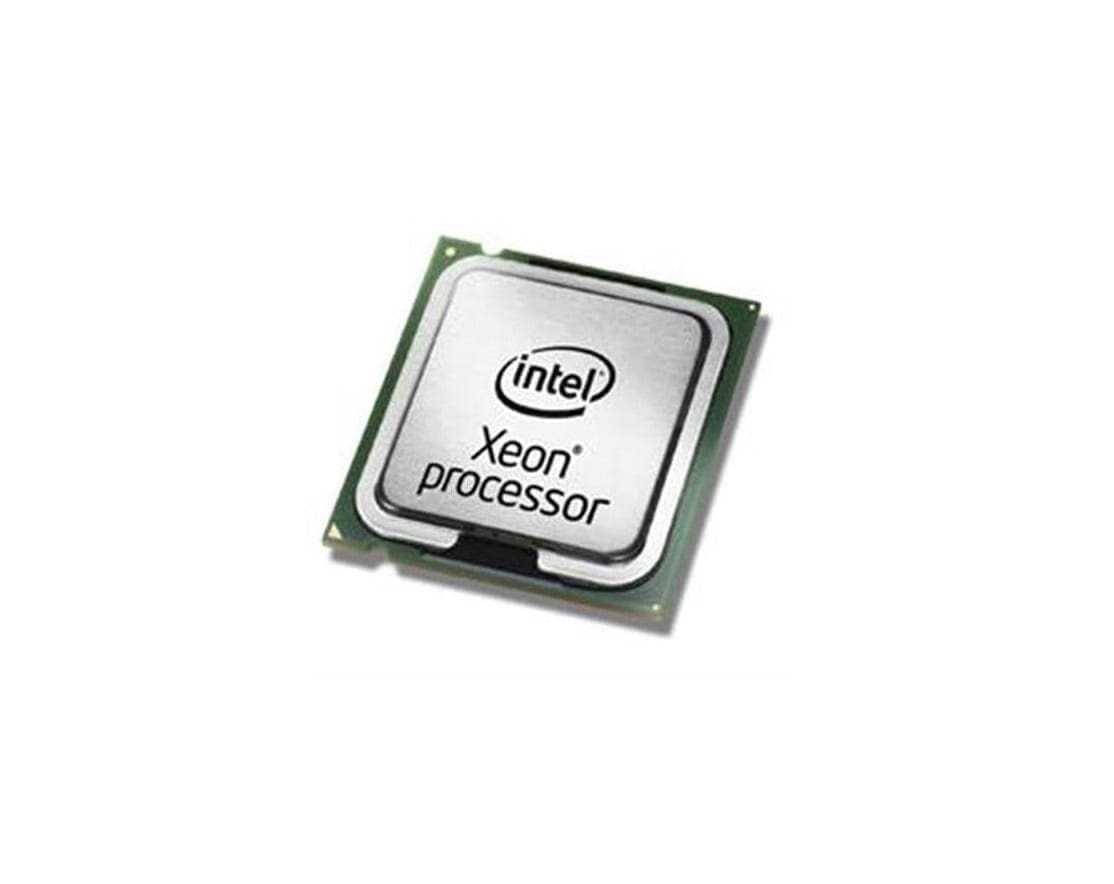

CD8069504248501 Intel Xeon W-3245M 16-Core 3.20GHz

CD8069504248501 Technical Specifications

Intel Xeon W-3245M 16-Core 3.20GHz 22MB L3 Cache Socket FCLGA3647 Processor

Brand Intel
Part No. CD8069504248501
Processor Type Workstation
Series Xeon W Processor
Core Model Type/ProcNo. W-3245M
Processor Code Name Cascade Lake
Manufacturing Technology 14 nm
# of Cores 16
# of Threads 32
Clock Speed 3.20 GHz
Max Turbo Frequency 4.40 GHz
L3 Cache Size 22 MB
Front Side Bus / QuickPath Interconnect 4.60 GHz
# of QPI Links 0
Thermal Power 205 Watts
Max Memory Size 2 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported No
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 77 °C
Embedded Options Available No
Scalability 1S
PCI Express 3.0
Max # of PCI Express Lanes 64
