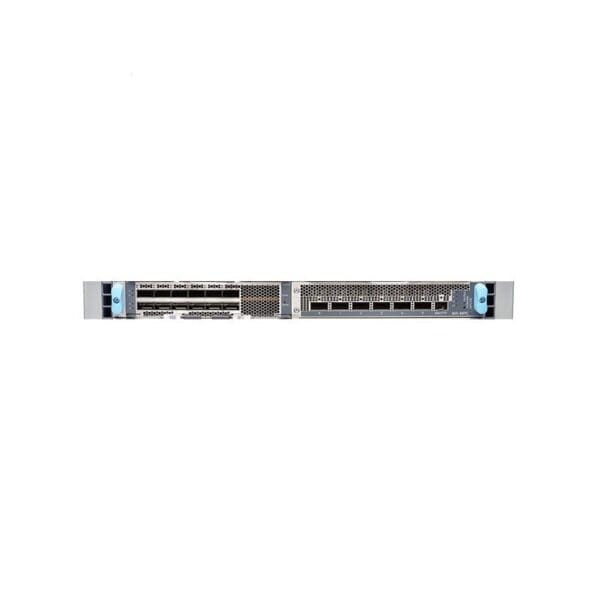

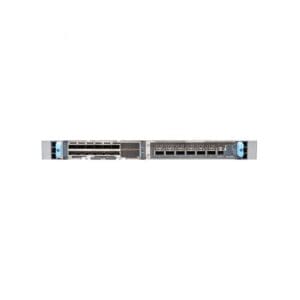

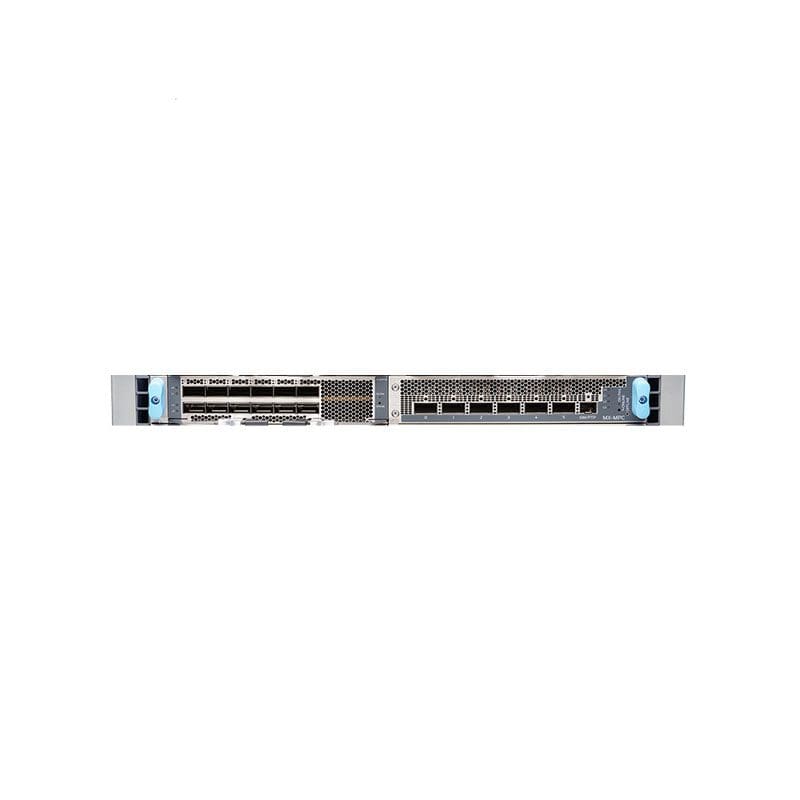

EX9253-6Q12C Juniper Networks Line Card expansion module
EX9253-6Q12C Overview
EX9253-6Q12C is a 12-port QSFP28 40GbE/100GbE and 6-port QSFP+ 40GbE line card. It is supported by the EX9253 Ethernet switch.
$86,199
EX9253-6Q12C Technical Specifications
Juniper Networks Line Card expansion module 100 Gigabit QS
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in card
Connectivity Technology :Wired
Data Link Protocol :40 Gigabit Ethernet, 100 Gigabit Ethernet
Status Indicators :Online, Link OK, Offline
Ports
Qty :12
Type :100 Gigabit QSFP28
Ports (2nd)
Qty :6
Type :40 Gigabit QSFP+
Interface Provided
Interfaces :6 x 40Gb Ethernet – QSFP+ – female, 12 x 40Gb Ethernet/100Gb Ethernet – QSFP28 – female
Power Device
Power Consumption Operational :740 watt
Miscellaneous
Color Category :Gray
Pricing Type :Field Replaceable Unit (FRU)
Dimensions & Weight
Width :1.3 inch
Depth :22 inch
Height :17 inch
Weight :14.55 lbs
Compatibility
Compatible With :Juniper Networks EX Series 9253
