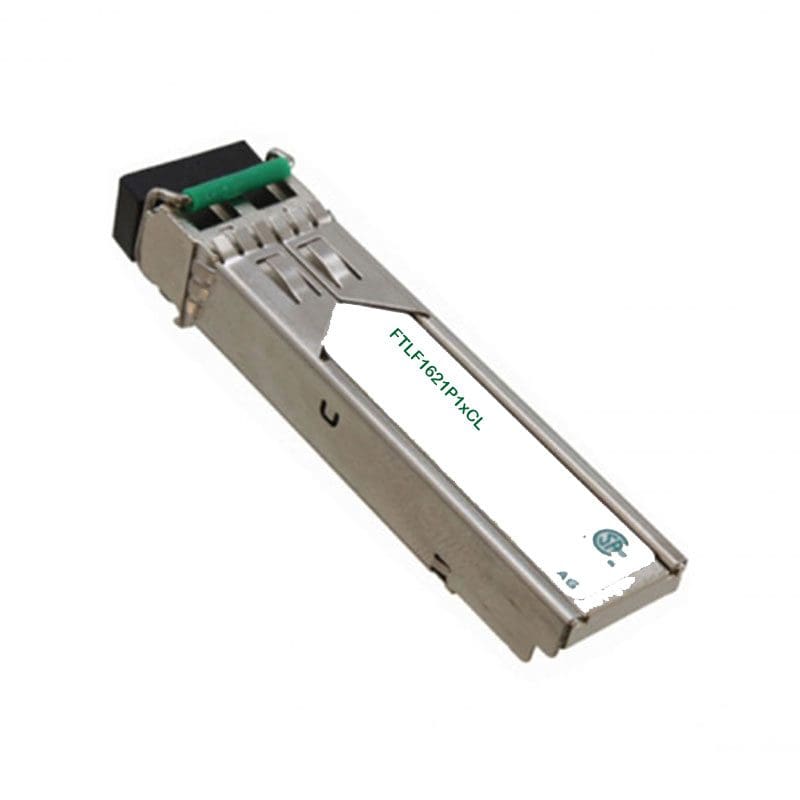

FTLF1621P1xCL Finisar Transceiver Module
FTLF1621P1xCL Overview
This from FINISAR is a Fiber Optic Transceiver with Data Rate 2.67 Gb/s, Wavelength 1270 to 1600 nm, Distance/Reach 80 km, Output Power -2 to 3 dBm, Receiver Sensitivity -30 to -28 dBm. More details for can be seen below.
$0
FTLF1621P1xCL Technical Specifications
Finisar Transceiver Module
Manufacturer: Finisar
Part Number FTLF1621P1xCL
Manufacturer FINISAR
Description OC-48 LR-2/STM L-16.2 SFP Optical Transceiver
Applications SONET OC-48 LR-2 / SDH STM L-16.2, SONET OC-12 / SDH STM 4, SONET OC-3 / SDH STM-1, Gigabit Ethernet / 1x/2x Fibre Channel
Standard Supported IEEE Std 802.3
Connections & Interface LC Connector
Interface 2-Wire
General Parameters
Data Rate 2.67 Gb/s Fast Ethernet
Wavelength 1270 to 1600 nm
Distance/Reach 80 km
Output Power -2 to 3 dBm
Fiber Modes Single Mode Fiber SMF
Form Factor SFP
Receiver Sensitivity -30 to -28 dBm
Power Dissipation 0.7 W (700 mW)
Tx Power -2 to 3 dBm
Tx/Rx Component DFB(Tx)
Supply Current 230 to 300 mA
Supply Voltage 3.3 V
Network Technology 1000BASE-LX
