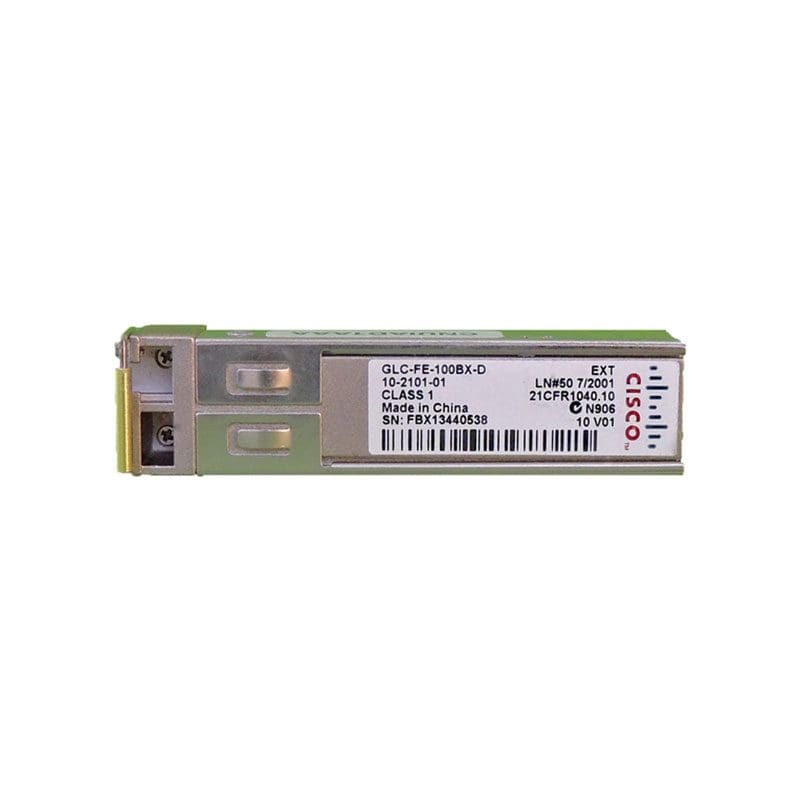

GLC-FE-100BX-D, Cisco SFP (Mini-GBIC) Transceiver Module

GLC-FE-100BX-D Overview

The Cisco 100BASE-BX10 (part numbers GLC-FE-100BX-D and GLC-FE-100BX-U) SFPs operate on ordinary SMF single-strand link spans up to 10 km long. A 100BASE-BX10-D device is always connected a 100BASE-BX10-U device with a single strand of standard SMF with an operating transmission range up to 10 km. The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices as depicted in Figure 2. 100BASE-BX10-D transmits a 1550-nm channel and receives a 1310-nm signal, whereas a 100BASE-BX10-U transmits a 1310-nm wavelength and receives a 1550-nm signal. Note in Figure 2 the presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1310-nm and 1550-nm light paths.

$123

Buy Now
Availability: In Stock
SKU:GLC-FE-100BX-D
Brand:

GLC-FE-100BX-D Technical Specifications

Cisco SFP (Mini-GBIC) Transceiver Module – 100BASE-BX – LC

General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: GLC-FE-100BX-D
Brand Name: Cisco
Product Name: 100Base-BX10 SFP Transceiver
Product Type: SFP (Mini-GBIC)
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports: 1 x 100Base-BX10
Interfaces/Ports Details: 1 x LC 100Base-BX10
LC Connector
Media & Performance
Connectivity Media: Single-mode Fiber (SMF) 100Base-BX10
Data Transfer Rate: 100 Mbps Fast Ethernet
Miscellaneous
Additional Information-
Distance: 10 km
Wavelength: 1550 nm
