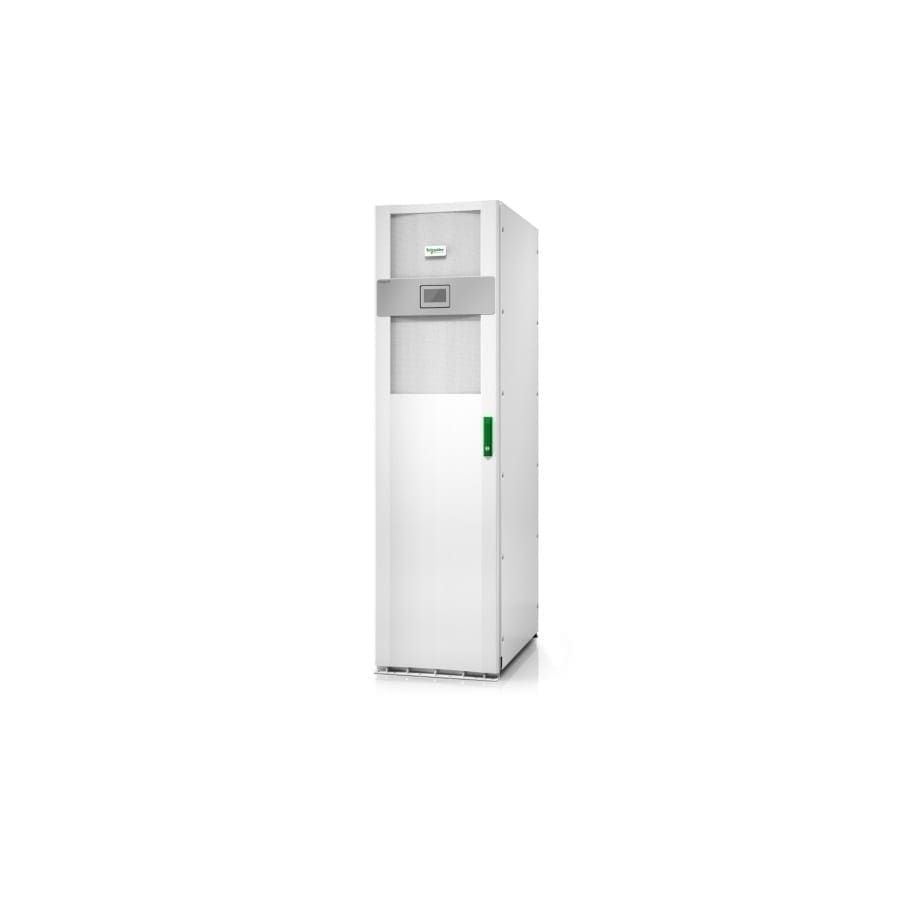

GVSUPS20KB2GS Galaxy VS UPS 20kW 480V, 1 internal 7Ah modular

GVSUPS20KB2GS Overview.

Galaxy VS UPS 20kW 480V, 1 internal 7Ah smart modular battery string, expandable to 2, Start-up 5×8
Highly efficient, easy-to-deploy 20kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5×8 start-up service and 1 smart modular battery string, expandable to 2 strings for extended runtime. Runtime charts available in the Documents tab.
Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-Up Service, Top and bottom cable entry

$11,255

Buy Now
Availability: In Stock
SKU:GVSUPS20KB2GS
Brand:

GVSUPS20KB2GS Technical Specifications

Galaxy VS UPS 20kW 480V, 1 internal 7Ah modular

Output
Max Configurable Power (Watts)
20.0kWatts / 20.0kVA
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Load Crest Factor
2.5
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
<1% linear load and <3% non-linear load
Output Voltage Tolerance
+/-1% after 50ms
Bypass
Built-in Static Bypass
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
408 – 552 (480)V
Input Total Harmonic Distortion
Less than 3% for full load
Maximum Short Circuit Withstand (Icw)
65.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
VRLA
Nominal Battery Voltage
480V
End of Discharge Maximum Battery Current
54.0A
End of Discharge Battery Voltage
384 Vdc
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
GVS_350mm_AirFilter, GVS_350mm_Seismic, GVSAIO_BypassCabinetCables_UL, GVSAIO_MBP_UL
Control panel
Touch Screen LCD User Interface
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlotâ„¢ Interface Quantity
1
Physical
Maximum Height
58.46inches (1485MM, 148.5CM)
Maximum Width
13.11inches (333MM, 33.3CM)
Maximum Depth
33.35inches (847MM, 84.7CM)
Net Weight
540.13lbs. (245.0KG)
Shipping weight
595.25lbs. (270.0KG)
Shipping Height
66.14inches (1680MM, 168.0CM)
Shipping Width
25.2inches (640MM, 64.0CM)
Shipping Depth
38.98inches (990MM, 99.0CM)
Color
Gloss level 85%, RAL 9003, White
