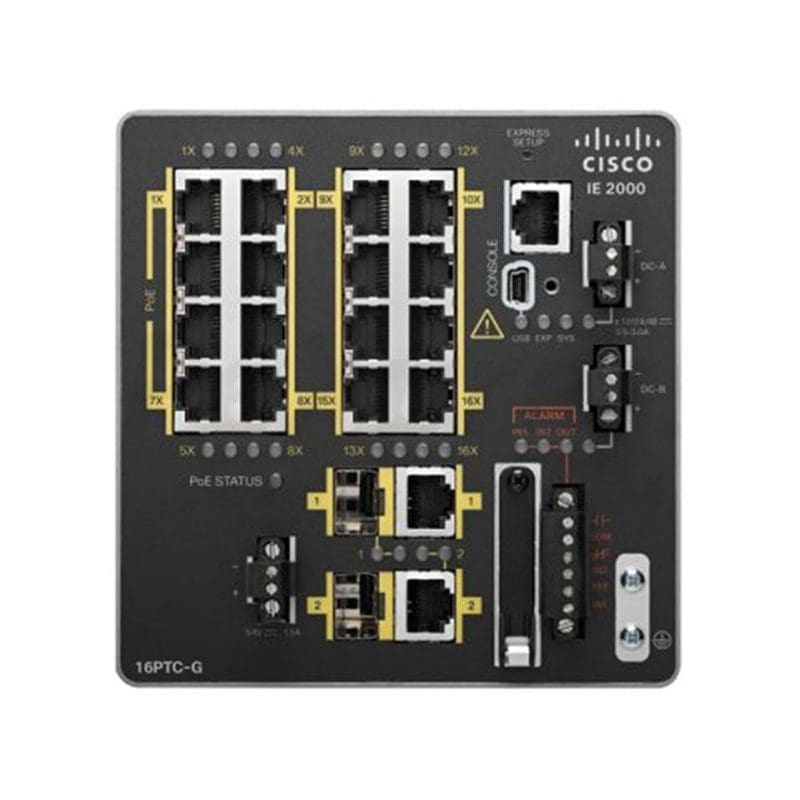

Refurbished IE-2000-16PTC-G-E Technical Specification
Cisco Industrial Ethernet 2000 Series
Manufacturer :Cisco Systems
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :2000 Series
Packaged Quantity :1
RAM
Installed Size :256 megabyte
Flash Memory
Installed Size :64 megabyte, 64 megabyte
Performance
Performance :Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
Capacity :IGMP groups: 255, Virtual interfaces (VLANs): 255
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :DIN rail mountable
Ports Qty :18
Routing Protocol :IGMP, Static IPv4 routing
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :HTTPS, SNMP 3, SSH
Power Over Ethernet (PoE) :PoE+
Features :Broadcast Storm Control, DHCP support, Multicast Storm Control, NAT support, PoE+, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Unicast Storm Control
Compliant Standards :IEEE 802.1x, IEEE 802.3at
Ports
Qty :16
Type :10/100 (PoE+)
Ports (2nd)
Qty :2
Type :Combo Gigabit SFP
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SD Memory Card
Interface Provided
Interfaces :16 x 100Base-TX RJ-45 PoE+, 2 x 1000Base-T RJ-45, 2 x SFP (mini-GBIC)
Software
Type :Cisco IOS LAN Base
Miscellaneous
Rack Mounting Kit :Optional
Authentication Method :RADIUS, Secure Shell (SSH), TACACS+
MTBF :374,052 Hours
