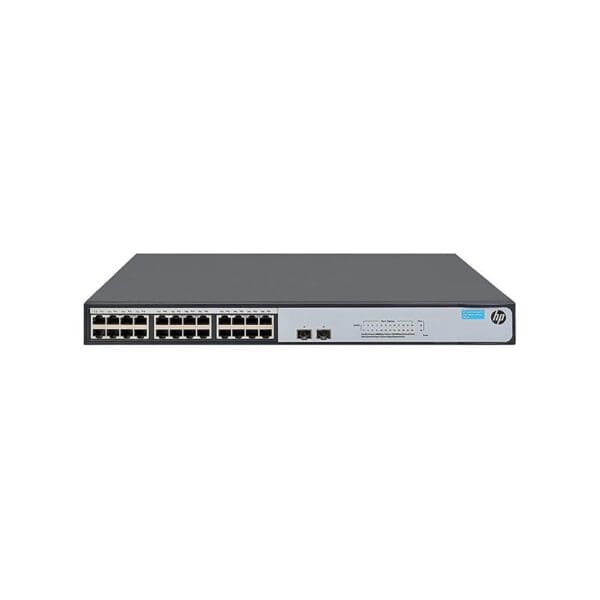

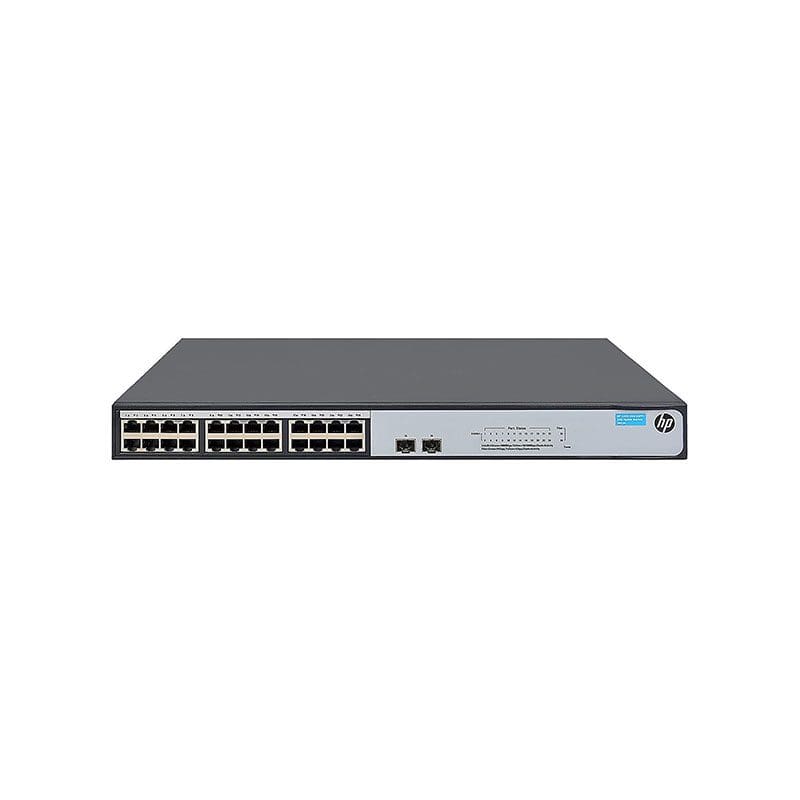

JH017A HP Switch 24 Port Gigabit Ethernet 2 Port SFP

JH017A Overview

Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Quality of Service (QoS), fanless, 512KB packet buffer, DiffServ Code Point (DSCP) support

$249

Buy Now
Availability: In Stock
SKU:JH017A
Brand:

JH017A Technical Specifications

HP Switch 24 Port Gigabit Ethernet 2 Port SFP

Manufacture Part Number : JH017A
Manufacture : HP
Device Type Switch – 24 ports – unmanaged
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 2 x Fast Ethernet/Gigabit SFP
Performance Throughput (64-byte packet size): 38.7 Mpps ¦ Switching capacity: 52 Gbps
MAC Address Table Size 8192 entries
Jumbo Frame Support 9216 bytes
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Flash Memory 1 MB
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
MTBF 126.1 years
Compliant Standards CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, CISPR 22, CSA 22.2 No. 60950, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A
Dimensions & Weight
Width 17.3 in
Depth 6.8 in
Height 1.7 in
Weight 4.85 lbs
