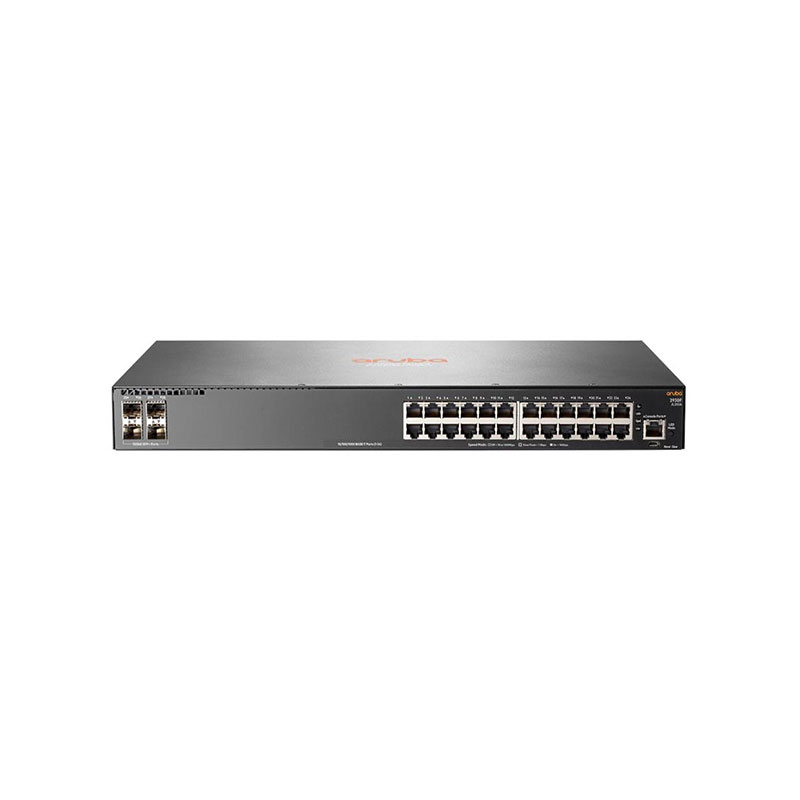

JL253-61002 HPE Aruba 2930F Series 28-Ports Switch
JL253-61002 Overview
The HPE Aruba JL253-61002 is a 28-port Gigabit Ethernet Layer 3 managed switch designed for enterprise access layer deployments and small to medium business networks. It features 28 RJ-45 10/100/1000Base-T ports, providing high-speed connectivity for workstations, servers, and networked devices, along with 4 SFP+ uplink ports for 1/10GbE fiber or copper connections to distribution or core switches.As part of the Aruba 2930F Series, the switch supports Layer 3 static routing and RIP, along with advanced Layer 2 features including VLANs, link aggregation (LACP), QoS, and security mechanisms such as ACLs and 802.1X authentication. This ensures efficient, segmented, and secure network traffic management.
JL253-61002 Technical Specifications
HPE Aruba 2930F Series 28-Ports Switch
Manufacturer Part Number: JL253-61002
Brand Name: HPE Aruba
Product Line: Aruba 2930F Series
Product Type: Managed Layer 3 Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x 1/10G SFP+
Switching Capacity: 128 Gbps
Forwarding Rate: 95.23 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 32,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Routing: Static IPv4 / IPv6, OSPF, RIP, VRF
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping
PoE Support: Optional (PoE+ models available)
Management: Web UI, CLI, SNMP, RMON, Aruba Central
Port Mirroring: Supported
