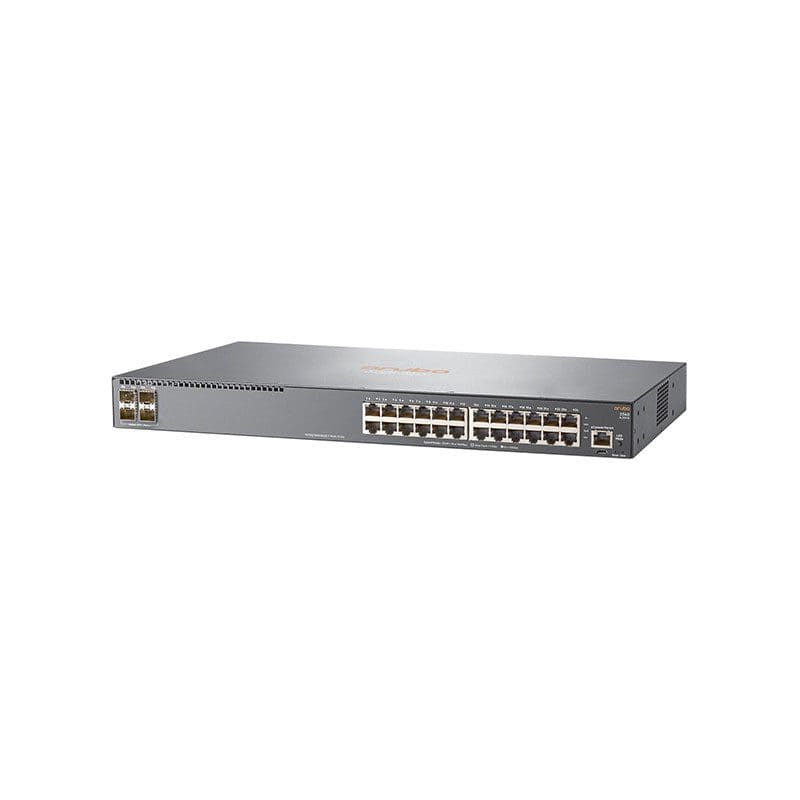

Refurbished JL255A HP ARUBA 2930f 24G PoE+ 4sfp+ Switch

Refurbished JL255A  Overview

Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL255A has 24x 10/100/1000 PoE+ ports and 4x 1000/10G SFP+ transceiver slots for high speed connectivity. PoE+ is supported with a power budget of 370 Watts.

$1,140

Buy Now
Availability: In Stock
SKU:JL255A-RF
Brand:

Refurbished JL255A Technical Specifications

HP 2930f 24G PoE+ 4sfp+ Switch – 24 Ports Managed -Rack-Mountable

GENERAL INFORMATION :
Device Type : HP ARUBA – Switch – 24 Ports Network Switch – L3 – Managed – Stackable
Enclosure Type : Rack-Mountable – 1u ARUBA 2930f
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 (Poe+) + 4 X 1 Gigabit / 4 Sfp+Port (Uplink)
Power Over Ethernet (Poe) : Poe+
Performance : Throughput : 95.2 Mpps ¦ Switching Capacity : 128 Gbps ¦ Latency (1 Gbps) : 3.8 µs ¦ Latency (10 Gbps) : 1.6 µs
Capacity : Jumbo Frame Size : 9220 ¦ Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (Stp) Support, Multiple Spanning Tree Protocol (Mstp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Jumbo Frames Support, Dhcp Server, Stp Root Guard, Uni-Directional Link Detection (Udld), Lldp Support, Link Aggregation Control Protocol (Lacp), Management Information Base (Mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (Gvrp), Multiple Vlan Registration Protocol (Mvrp), Neighbor Discovery Protocol (Ndp), Class Of Service (Cos), Type Of Service (Tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (Icmp), Icmp Router Discovery Protocol (Irdp), Virtual Extensible Lan (Vxlan), Management Information Base (Mib) Ii
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (Lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
Processor : 1 X Arm Cortex-A9 : 1.016 Ghz
Ram : 1 Gb – Ddr3 Sdram
Flash Memory : 4 Gb
EXPANSION / CONNECTIVITY :
Interfaces : 24 X 1000base-T – Rj-45 – Poe+ ¦ 4 X Gigabit / 10gbit Lan – Sfp+ ¦ 1 X Serial (Console)
Expansion Slots : 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 4 (Max)
