JL317-61101 Technical Specifications

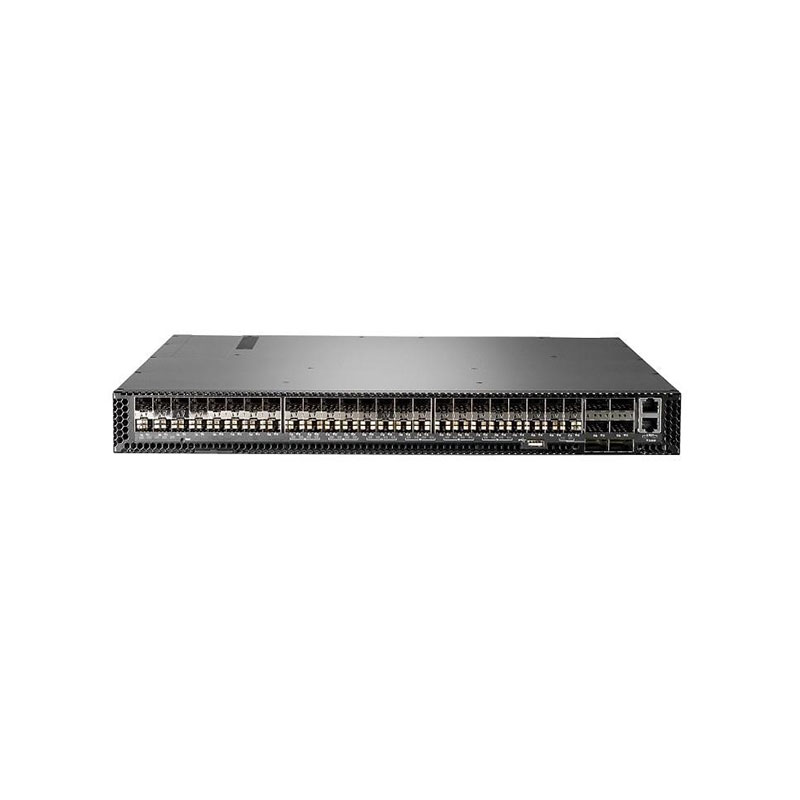

HP Altoline 6921 Series 48 x SFP+ Ports Switch
Part Number: JL317-61101
Series: HPE Altoline 6921 Series
Type: Layer 3 Managed 10GbE Fibre Channel / Ethernet Switch
Total Ports: 48
High-Speed Ports: 48 x 10G SFP+
Switching Capacity: 1.44 Tbps
Forwarding Rate: 1.07 Bpps
MAC Address Table: 128,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing Protocols: IPv4/IPv6 Static Routing, RIP, OSPF, BGP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, IEEE 802.1p, DSCP, CoS
Security: 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Syslog
Stacking Capability: Supported (up to 4 units)
Port Mirroring: Supported
LED Indicators: Power, System, Link/Activity, Speed
