JL557A Technical Specifications

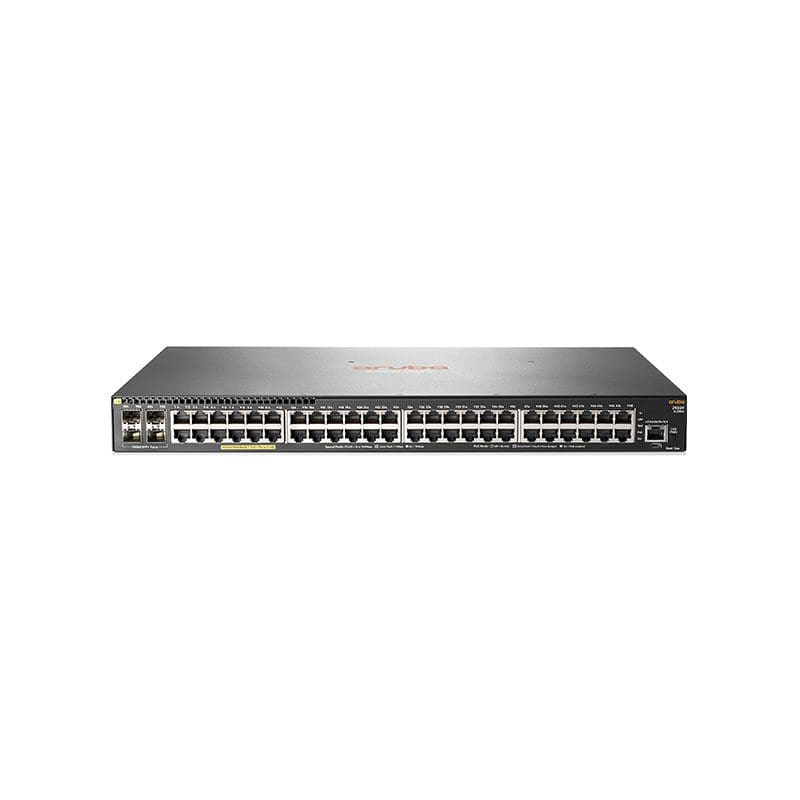

HP Aruba 2930F 48G PoE+ 4SFP Switch 48 Ports Managed Rack Mountable
General information :
Device Type : Switch – 48 Ports – L3 – Managed – Stackable
Enclosure Type : Rack-Mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (Poe+) + 4 X Gigabit Sfp (Uplink)
Power Over Ethernet (Poe) : Poe+
Performance : Throughput: 77.4 Mpps ¦ Switching Capacity: 104 Gbps ¦ Latency (1 Gbps): 3.8 µs
Capacity : Jumbo Frame Size: 9220 ¦ Ipv4 Routing Table Entries: 10000 ¦ Ipv6 Routing Table Entries: 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Ram : 1 Gb Ddr3 Sdram
Flash Memory : 4 Gb
Expansion / Connectivity :
Interfaces : 48 X 1000base-T Rj-45 Poe+ – 740 W ¦ 4 X Gigabit Lan Sfp ¦ 1 X Serial (Console)
Expansion Slots : 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 4 (Max)
Power :
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 459 Watt
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Consumption Operational : 48.6 Watt
