The QFX10000 line of highperformance fixed core and spine switches delivers industry-leading scalability, density, and flexibility, helping cloud and data center operators build automated data center networks that provide superior long-term investment protection. Designed for a diverse set of deployment options, the QFX10000 switches allow data center operators to build cloud networks that best suit their deployment needs and easily evolve as requirements change over time.
The QFX5210 is a flexible, 64- port, fixed-configuration switch designed for spine-and-leaf applications in next-generation IP fabric networks. Featuring line-rate, high-density QSFP+/ QSFP28 ports supporting 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE connections, the QFX5210 offers an advanced L2, L3, and MPLS feature set. This allows network operators to build large, high-density IP fabrics that support network virtualization and intelligent traffic forwarding based on proven, Internet-scale technology, while enabling easy upgrades to 25GbE and 50GbE servers.

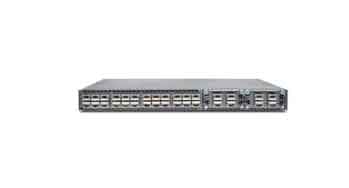

QFX5100-48S-3AFI Technical Specifications
The Juniper Networks QFX5100 line of access and aggregation switches delivers low latency, flexible deployment options, and rich Layer 2 and Layer 3 features, making it the industry’s most nimble family of switches.
Featuring Topology-Independent In-Service Software Upgrades (TISSU*) and support for L2 gateway capabilities for bridging between virtualized and baremetal servers, the QFX5100 is designed for the most demanding, high-performance data center deployments. Highly flexible, the QFX5100 can be deployed in mixed 1GbE, 10GbE, and 40GbE environments within Juniper Virtual Chassis, Virtual Chassis Fabric, Junos Fusion and QFabric architectures, as well as within industry-standard architectures such as spine and leaf and Layer 3 fabrics.
The EX4600 line of Ethernet switches delivers data center class scale, high availability, and high performance to campus distribution deployments. The EX4600 offers fixed 10 Gpbs and modular 10 Gpbs and 40 Gbps ports, giving it the flexibility to also be implemented in data center top-of-rack and service provider aggregation deployments.
Featuring up to 72 wire-speed 10GbE small form-factor pluggable and pluggable plus transceiver (SFP/SFP+) ports, and up to 12 wire-speed 40GbE quad SFP+ transceiver (QSFP+) ports in a compact one rack unit (1 U) platform, the Juniper Networks EX4600 Ethernet Switch delivers 1.44 Tbps of Layer 2 and Layer 3 connectivity to networked devices such as secure routers, servers, and other switches. The EX4600 base switch provides 24 fixed 10GbE SFP/SFP+ ports and 4 fixed 40GbE QSFP+ ports. In the base model, 12 of the 24 fixed SFP/SFP+ ports can operate as 1GbE ports, providing the flexibility to support mixed 1GbE and 10GbE environments. A total of four models are available: two featuring AC power supplies and front-to-back or back-to-front airflow; and two featuring DC power supplies and front-to-back or back-to-front airflow. Each model includes dual power supplies.
All versions feature two expansion slots that can accommodate optional expansion modules, providing tremendous configuration and deployment flexibility for enterprise distribution networks. Two expansion modules are available:
- 8x10GBASE SFP/SFP+ fiber expansion module1
- 4x40GbE QSFP+ expansion module2
Featuring up to 48 wire-speed 1GbE or 10GbE small form-factor pluggable transceiver (SFP/SFP+) or 100M/1GBASE-T/10GBASE-T ports in a compact one rack unit (1 U) platform, the Juniper Networks® EX4550 Ethernet Switch delivers 480 Gbps of Layer 2 and Layer 3 connectivity to networked devices such as servers and other switches. Two versions of the EX4550 base switch are available: the EX4550-32F, a fiber-based version that provides 32 fixed 10GbE SFP/SFP+ pluggable ports; and the EX4550-32T, a copper-based version that supports 32 fixed 100M/1GBASE-T/10GBASE-T ports.
Both versions feature two expansion slots, one in front and one in back, that can accommodate one of four optional expansion modules, providing tremendous configuration and deployment flexibility for campus and data center access and aggregation networks.
The EX4300 Multigigabit Ethernet Switch is a high-performance access switch for advanced branch or campus deployments. The modern campus environment must adapt to 802.11ac Wave II standards and accommodate access points that require multigigabit speeds and greater power connectivity. The EX4300 Multigigabit switch is a flexible and secure offering for the ever-connected enterprise, supplying a 1680 W Power over Ethernet (PoE) power budget with two power supplies to support high-density IP telephony, surveillance cameras, and/or wireless access point deployments.
The EX4300 Multigigabit switch supports 100 Mbps and 1/2.5/5/10 Gbps speeds using existing Cat5e, Cat6, and Cat6a cabling infrastructure. Uplink modules offer options that include four 10GbE SPF+, two 40GbE QSFP, or one 100GbE QSFP28 port. Power over Ethernet (PoE++) is enabled on all EX4300 Multigigabit access ports based on the 802.3at/af/bt standards for increased usage of up to 95 watts per port. Additionally, all access and uplink ports on the EX4300 Multigigabit switch are MACsec AES256-compliant for increased network security.

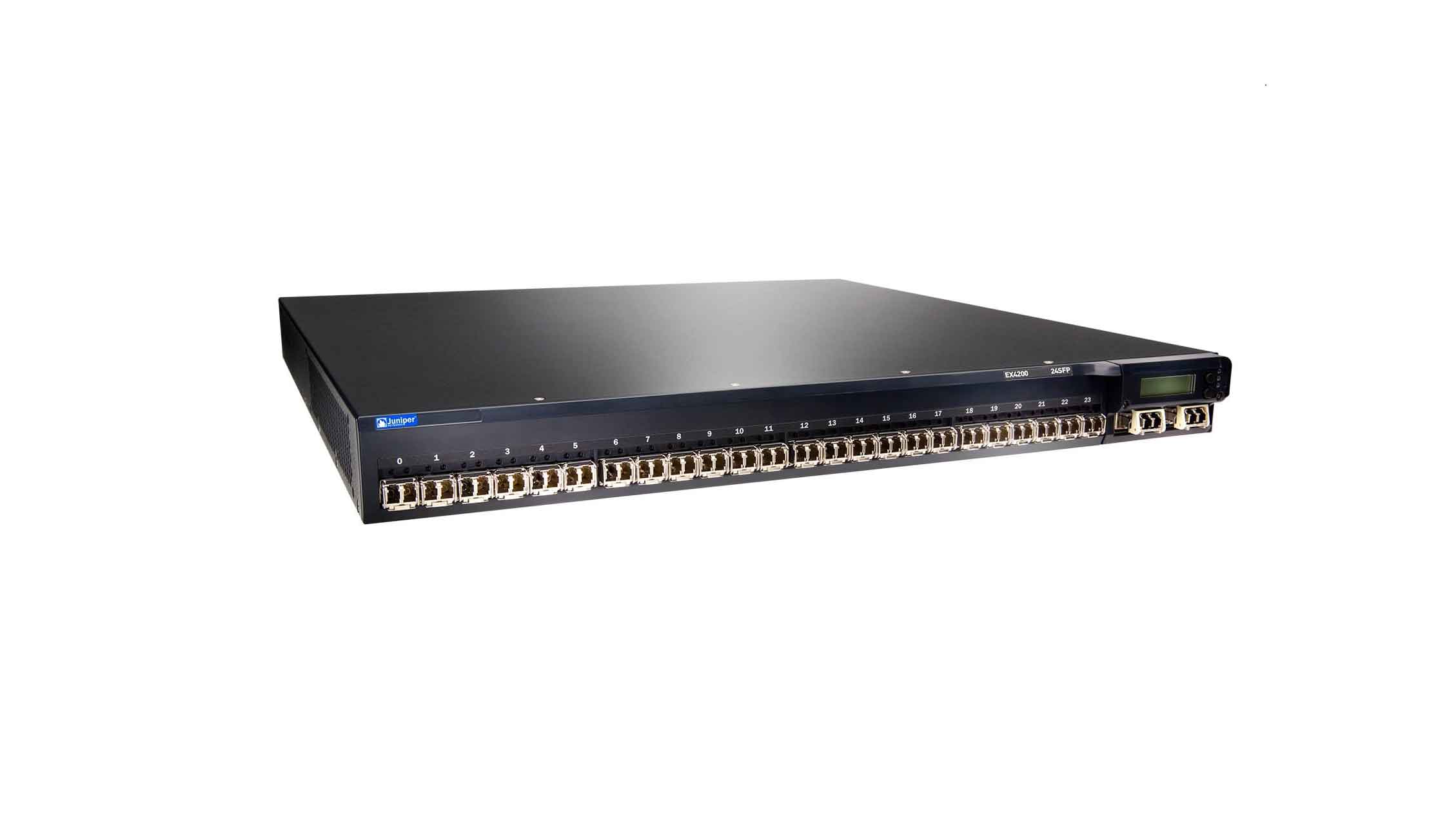

The EX4200 Ethernet Switch is a compact, fixed-configuration solution that deploys easily in campus installations, as well as in 1 Gigabit Ethernet (1GbE) access environments in the data center. EX4200 brings flexible, scalable, high-performance switching to campuses and data center top-of-rack deployments, combining the availability and reliability of modular solutions with the flexibility of stackable switches.
Juniper’s Virtual Chassis technology can be used to connect up to 10 EX4200 switches as a single logical device, delivering a scalable solution perfect for growing campus installations. The EX4200 can also be combined with EX4500 and EX4550 Switches in the same Virtual Chassis to support mixed 1GbE and 10GbE environments.
The EX4200 switches support 10/100/1000BASE-T with both 24- and 48-port configurations, and they optionally include full or partial IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+. A 24-port 100BASE-FX/1000BASE-X SFP-based fiber configuration is available for gigabit aggregation in long-distance deployments. Available uplinks include 4-port 1GbE or 2-port 10GbE copper or fiber configurations, with and without Media Access Control Security (MACsec) capabilities.

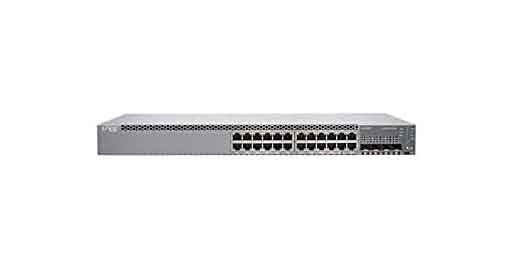

Juniper Networks, Inc. JUN#EX340024P JUNIPER EX3400 24PT POE L3 OPEN SOURCED
JUNIPER EX3400 24PT POE L3 OPEN SOURCED

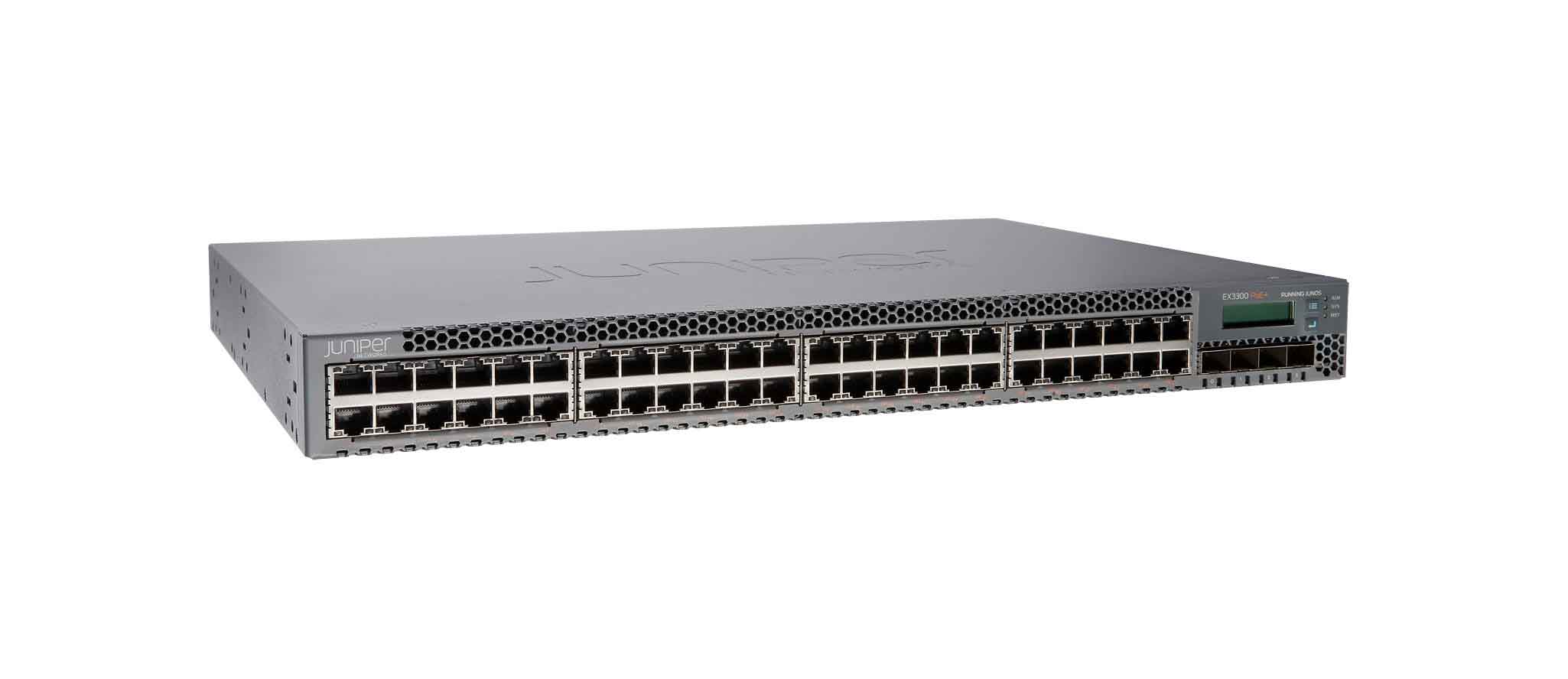

Product Name EX3300 48 Port 10/100/1000BASET with 4SFP Plus 1/10G Uplink PortsProduct Type Layer 3 SwitchManageable YesEthernet Technology Gigabit EthernetFast EthernetProduct Family EXTotal Number of Network Ports 48PoE (RJ-45) Port NoForm Factor Rack-mountableNetwork Technology 10/100/1000Base-T10/100Base-TXGreen Compliant YesGreen Compliance Certificate/Authority RoHS-6Compatible Rack Unit 1UNumber of Total Expansion Slots 4Number of Network (RJ-45) Ports 48Port/Expansion Slot Details 48 x Gigabit Ethernet Network4 x 10 Gigabit Ethernet Expansion SlotHeight 1.7″Width 17.4″Depth 12″Expansion Slot Type SFP+Product Series EXProduct Model EX3300-48TInput Voltage 110 V AC220 V ACLayer Supported 3Token Ring Port NoLRE Port NoRedundant Power Supply YesNumber of SFP+ Slots 4Memory Technology DRAMManagement QoSCLIDHCPTelnetSNMP v1,v2c,v3SyslogMIBRMON 1,2,3,9VLANWeb-based ManagementJunos WebFlash Memory 1 GBPower Source Power SupplyStandard Memory 1 GBLimited Warranty Lifetime
EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium.
Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices.
Optional front panel 10GbE uplink ports support connections to higher-layer devices. Both models support Juniper’s unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.

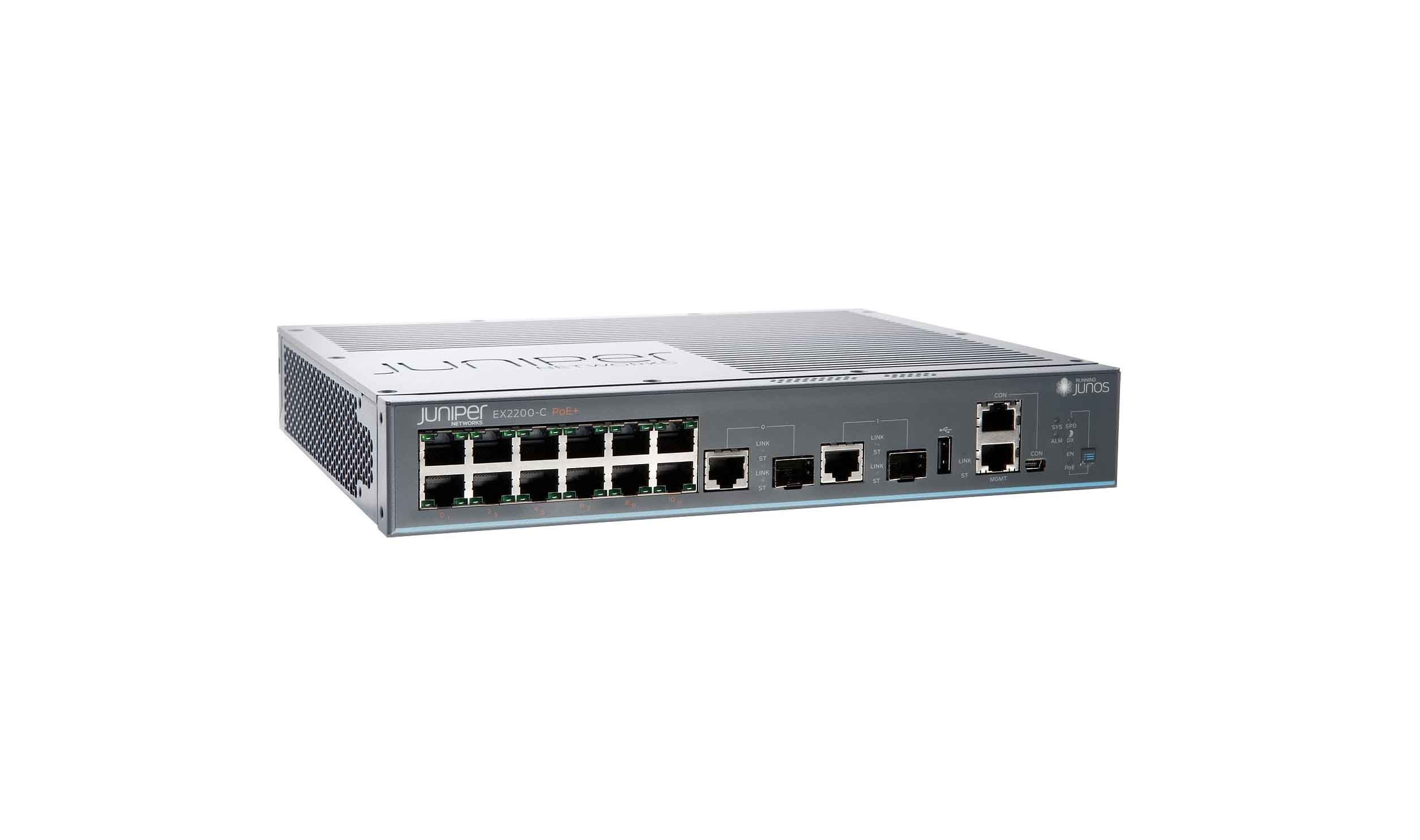

The Juniper Networks EX2200-C Ethernet Switch delivers a compact, silent, and power efficient platform for low-density micro branch deployments and commercial access or enterprise workgroup environments outside the wiring closet.
Featuring 12 10/100/1000BASE-T access ports with and without Power over Ethernet Plus (PoE+) in a fanless design, the EX2200-C switches deliver a powerful solution for supporting services such as unified communications, IP telephony, closed circuit television (CCTV), and other applications in office, classroom, hospitality, and other space and wiring constrained environments. Two front panel, dual-purpose (10/100/1000BASE-T or 100/1000BASE-X) uplinks provide operational flexibility
