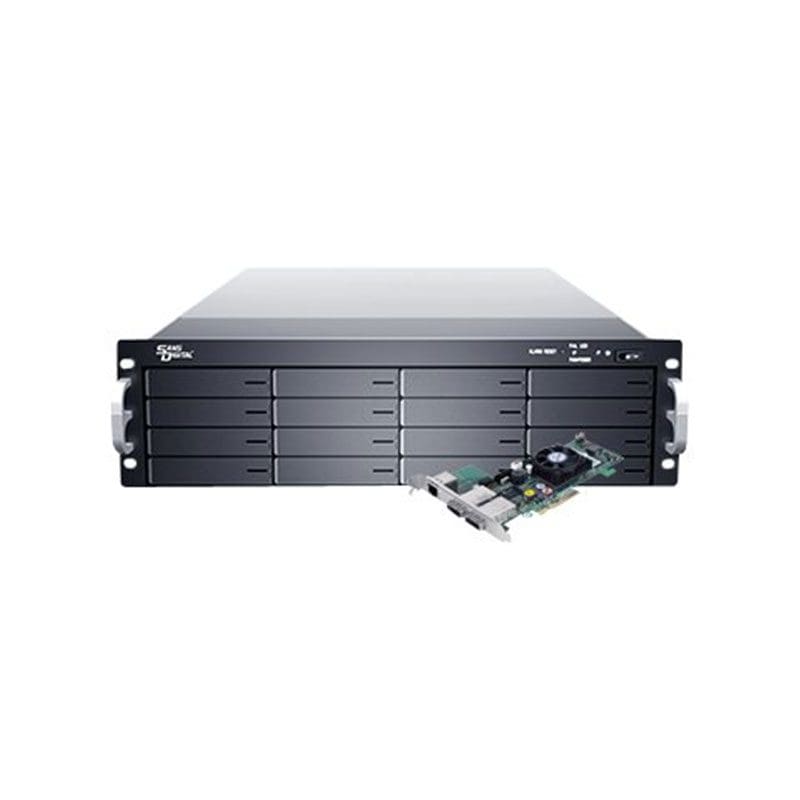

KT-ES316X6+BHP Sans Digital EliteSTOR Series Storage Enclosure

KT-ES316X6+BHP Technical Specifications

Sans Digital EliteSTOR Series ES316X6+BHP Storage Enclosure

Brand : Sans
Manufacturer Part Number : KT-ES316X6+BHP
Device Type Storage enclosure
Enclosure Type Rack-mountable – 3U
Product Description
Sans Digital EliteSTOR Series ES316X6+BHP – storage enclosure
Bundled with
High Performance PCIe 2.0 x8 Dual Core SAS RAID Controller
Max Supported Capacity
48 TB
Installed Devices / Modules Qty
16 (max)
Supported Drives
SATA-600 / SAS-2
Hard Drive
0 no HDD – hot-swap
Power Redundancy
Optional
Supported Devices / Modules Qty 16
Supported Drives SATA-600 / SAS-2
Miscellaneous
Features Built-in 2 cooling fans
Cables Included 1 x SAS cable
Compliant Standards UL, FCC, RoHS
Storage
Max Supported Capacity 48 TB
Bundled with High Performance PCIe 2.0 x8 Dual Core SAS RAID Controller
Hard Drive
Type No HDD – hot-swap
Capacity 0
Expansion / Connectivity
Expansion Bays 16 (total) / 16 (free) x hot-swap – 3.5″
Interfaces 2 x SAS 6Gb/s – 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) ¦ 1 x management – RJ-11
Power
Power Device Internal power supply – hot-plug
Max Supported Qty 3
Power Redundancy Optional
Power Redundancy Scheme N+1 (with optional power supply)
Power Provided 650 Watt
