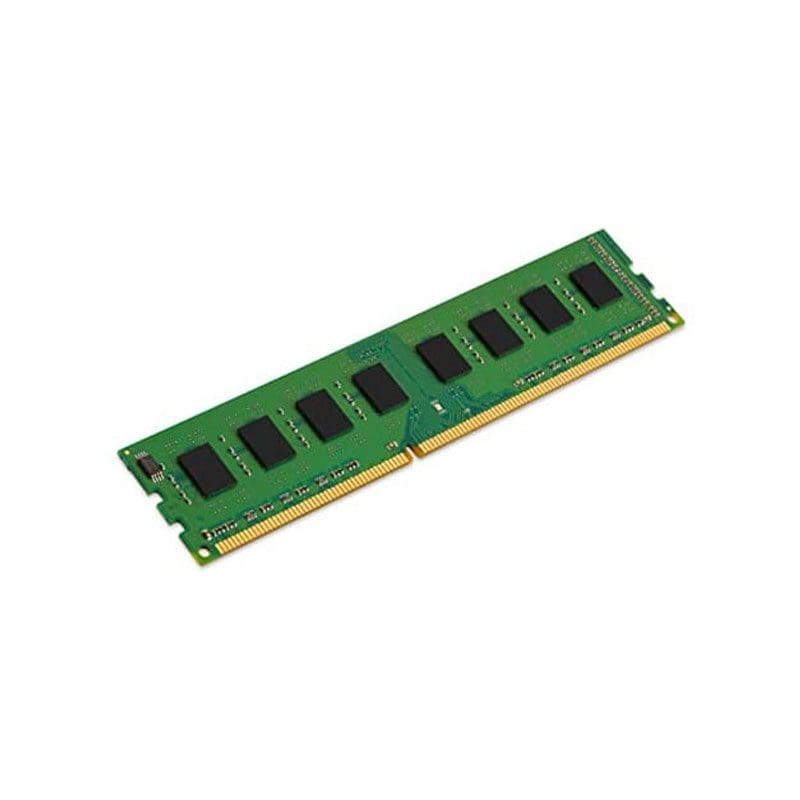

KVR32N22D8/16BK Kingston 16GB DDR4 DIMM Memory Module

KVR32N22D8/16BK Technical Specifications

Kingston 16GB PC4-25600 DDR4-3200MHz non-ECC Unbuffered CL22 288-Pin DIMM 1.2V Dual Rank Memory Module

Type: DRAM memory module
Technology: DDR4 SDRAM
Form Factor: DIMM 288-pin
Module Height (inch): 1.23
Speed: 3200 MHz (PC4-25600)
Latency Timings: CL22 (22-22-22)
Data Integrity Check: Non-ECC
Features: Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), sixteen banks, Low-power auto self refresh (LPASR), unbuffered
Module Configuration: 2048 x 64
Chips Organization: 1024 x 8
Voltage: 1.2 V
Lead Plating: Gold
BULK 50 UNIT
