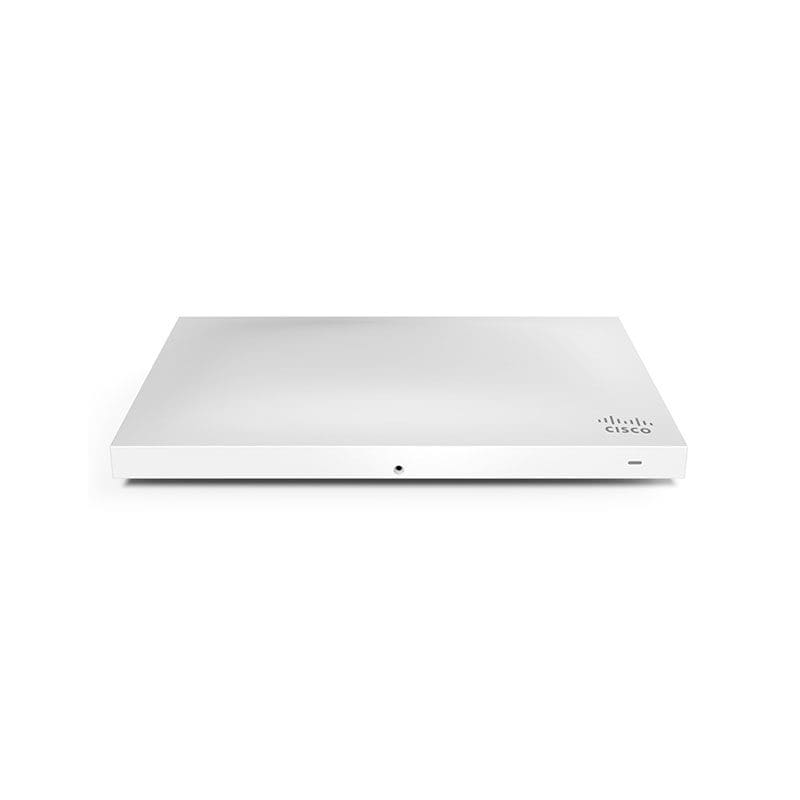

MR42-HW Cisco Meraki MR42 Cloud Managed – Wireless Access Point

MR42-HW Overview

The Cisco Meraki MR42 is a four radio, cloud-managed 3×3 MU-MIMO 802.11ac Wave 2 access point. Designed for high-performance, high-density next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR42 offers performance, security, and simple management. The MR42 provides a maximum 1.9 Gbps aggregate dual-band frame rate with concurrent 802.11ac Wave 2 and 802.11n 3×3:3 MIMO radios. A dedicated third radio provides real-time WIDS/ WIPS with automated RF optimization. In addition, an integrated fourth radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing functionality. The MR42 is 100% cloud-managed via the intuitive, browser-based Meraki Dashboard, and includes a rich, out-of-the-box feature set without additional cost or complexity.

MR42-HW Technical Specifications

Cisco Meraki MR42 Cloud Managed – Wireless Access Point

Networking
Compliant Standards :IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Connectivity Technology :Wireless
Data Link Protocol :IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate :1.9 Gbps
Features :3T3R MIMO technology, 802.1x authentication, Anti-virus protection, Bluetooth Low Energy Beaconing, Ceiling mountable, Cloud managed, Maximum Ratio Combining (MRC), Network Access Control (NAC), Security lock slot (cable lock sold separately), Tagged VLAN, Traffic shaping, Unscheduled Automatic Power Save Delivery (U-APSD), Wall mountable, Wi-Fi Multimedia (WMM) support, Wireless Guest Services, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Form Factor :External
Power Over Ethernet (PoE) :PoE+
Status Indicators :Status
Type :Wireless access point
Wi-Fi Bands :2.4 GHz, 5 GHz
Wireless Protocol :802.11a/b/g/n/ac Wave 2
Interface Provided
Connector Type :RJ-45
Qty :1
Type :1000Base-T (PoE+)
Miscellaneous
Authentication Method :Active Directory, Extensible Authentication Protocol (EAP), MS-CHAP v.2
Compliant Standards :AS/NZS 4268, CAN/CSA-C22.2 No. 60950-1, CISPR 22, EN 300 328, EN 301 893, EN 301489-17, EN 50385, EN 60950-1, EN 62311, EN 62479:2010, EN55024, FCC CFR47 Part 15 C, FCC Part 15 B, FCC Part 15 E, FCC Part 2, ICES-003, IEC 60950-1, RSS-102, UL 2043, UL 60950-1, VCCI
Encryption Algorithm :AES, TKIP, TLS, TTLS, WEP, WPA, WPA2-Enterprise, WPA2-PSK
Antenna
Antenna Form Factor :Internal
Directivity :Omni-directional
Environmental Parameters
Humidity Range Operating :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Compatibility :PC
Manufacturer :Meraki
Model :MR42 Cloud Managed
Packaged Quantity :1
Product Line :Cisco Meraki
Line Properties
Line Coding Format :256 QAM
Power Device
Power Consumption Operational :20 Watt
Dimensions & Weight
Depth :6.1 in
Height :1.5 in
Weight :24.69 oz
Width :10 in
