MS22P-HW Technical Specifications

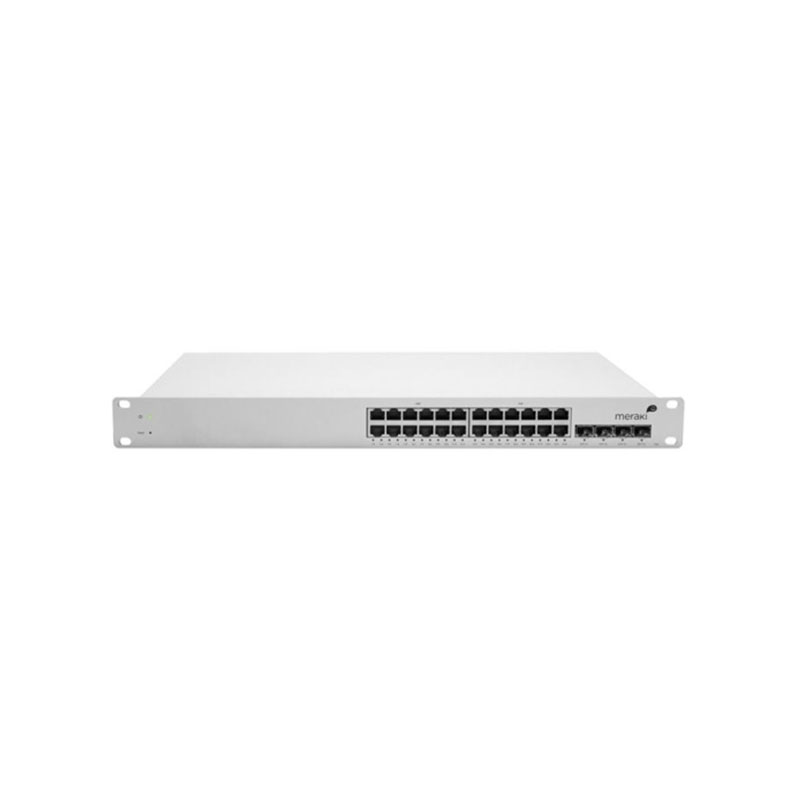

Cisco Meraki MS22 Series MS22P 24-Ports PoE GE Switch
Part Number: MS22P-HW
Series: Cisco Meraki MS22 Series
Type: Layer 2 Cloud-Managed Switch
Ports: 24 x 10/100/1000 RJ-45 PoE
Uplinks: 2 x Gigabit SFP
Switching Capacity: 88 Gbps
Forwarding Rate: 65.4 Mpps
MAC Table: 16K entries
VLANs: 4,094 supported
PoE Standard: IEEE 802.3af (PoE)
PoE Budget: 380W max
Stacking: Not supported
Security: 802.1X, ACLs, Port Security, DHCP Snooping
QoS: 802.1p, DSCP
Management: Meraki Cloud Dashboard (Web-based)
Form Factor: 1U Rack-mountable
Power Supply: Internal AC
Power Consumption: ~450W max
Operating Temp: 0°C to 40°C
