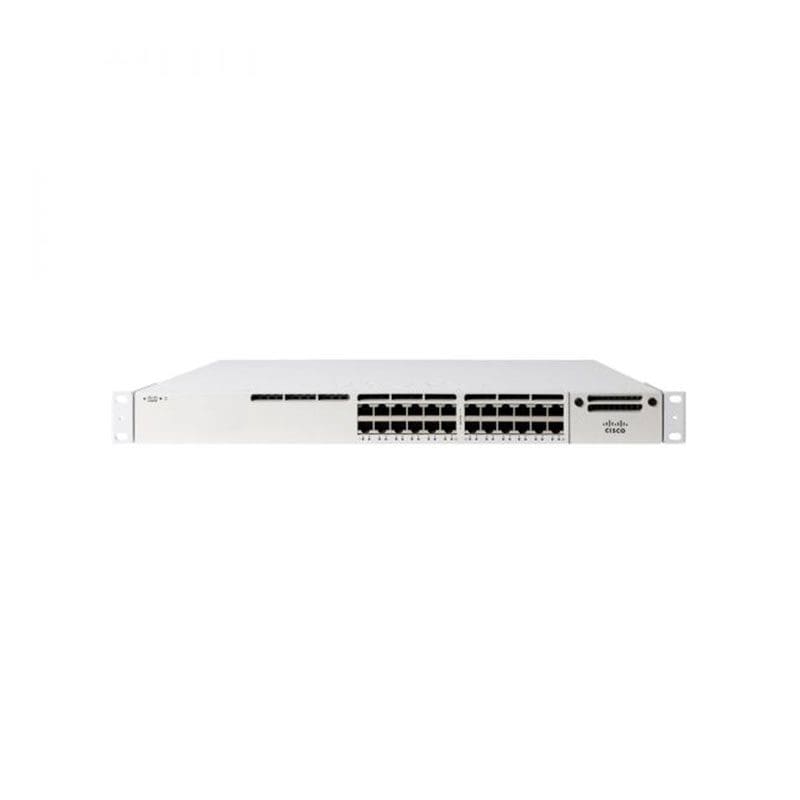

MS390-24P-HW Meraki 24-Port Gbe PoE Switch

MS390-24P-HW Overview

The Meraki MS390 addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The MS390 delivers resiliency with fast stack convergence and StackPower. The MS390 provides Adaptive Policy using an over- the-wire tag which segments traffic into security groups to deliver scalable security. The MS390 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

MS390-24P-HW Technical Specifications

Meraki 24-Port Gbe PoE Switch

Product Line: Meraki
Product Series: MS390
Interfaces/Ports
Total Number of Network Ports 24
Uplink Port Yes
Modular Yes
Stack Port Yes
Port/Expansion Slot Details 24 x Gigabit Ethernet PoE+, 2 x Stack, 1 x Expansion Slot
Media & Performance
Media Type Supported Twisted Pair, Optical Fiber
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots 1
Expansion Slot Type I/O Module
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Power Description
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 17.5″
Depth 17.7″
Weight (Approximate) 16.33 lb
Miscellaneous
Package Contents
24-port Gbe PoE+ Switch
1 x Power Supply (MA-PWR-715WAC)
Rack Mount Brackets and Screw Kit
3 x Pre-Installed Fans
Cable Guide
Environmentally Friendly Yes
Environmental Certification RoHS
