MX80BASE-T Technical Specifications

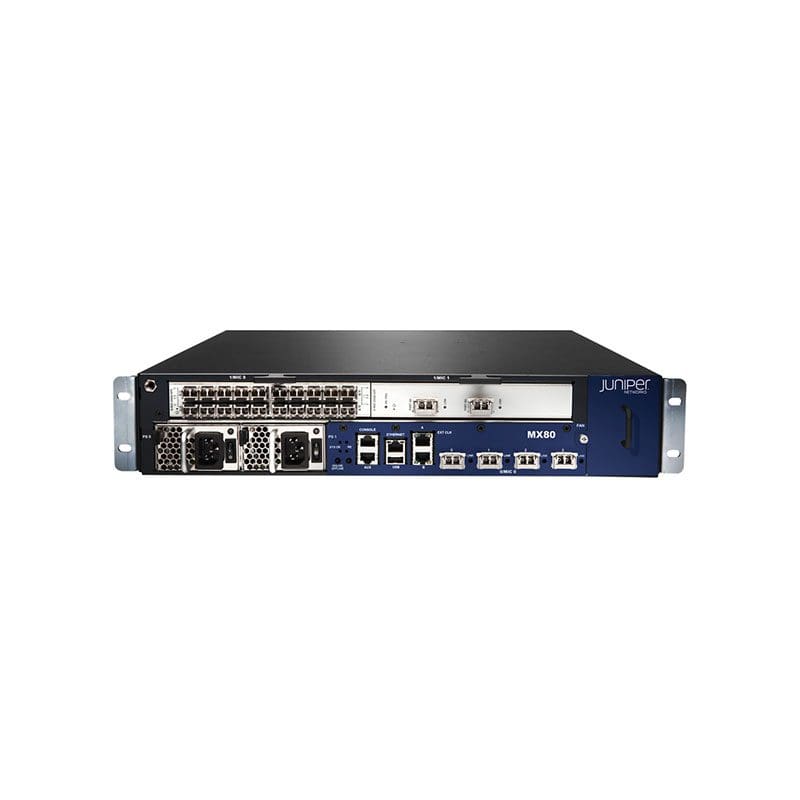

Juniper Networks MX80 Router Chassis
Layout
System capacity 80 Gbps
Slot orientation Horizontal
Mounting Front or center
Physical Specification
Dimensions
(W x H x D) 17.5 x 3.5 x 23.46 in (44.5 x 8.9 x 59.6 cm)
Weight fully loaded 30 lb/13.7 kg
Weight unloaded NA
Routing Engine
Default memory 8 MB boot flash; 4 GB on NAND flash storage; 2 GB of DDR2 RAM
Number of cores 1 core
Redundancy
Components Power supplies and fans
Environmental
Air flow Side to side [forced air]
Operating temperature 32° to 115° F (0° to 46° C) at sea level
Operating humidity 5% to 90%
Operating altitude 10,000 ft (3048 m)
Certifications
NEBS – GR-63-Core Physical Protection
– GR-1089-Core:EMC and Electrical Safety
