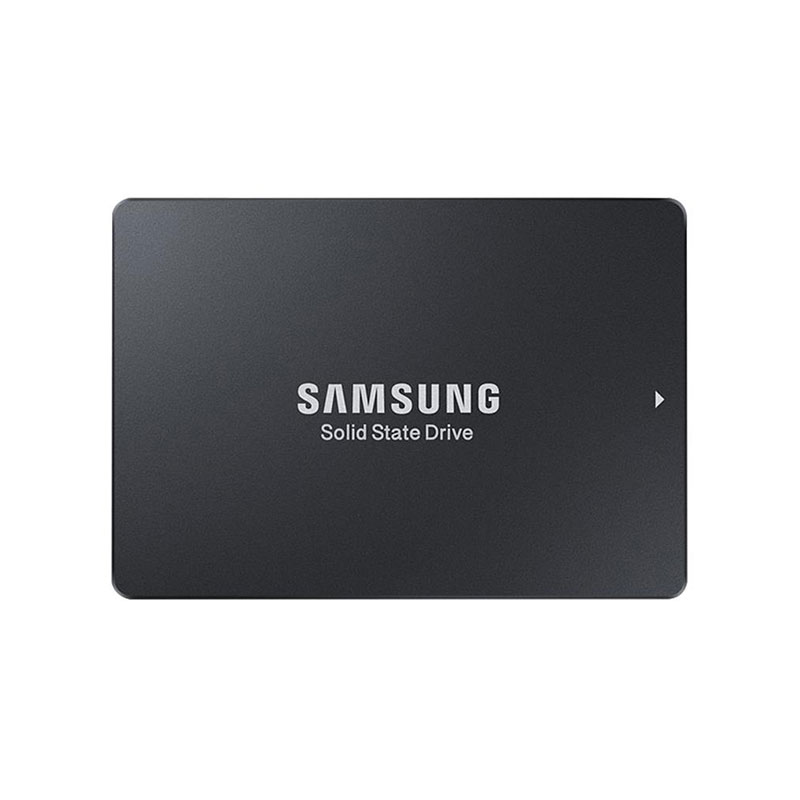

MZ7L3960HCJR-00AMV Technical Specifications
Samsung 960 Gigabytes(GB) Serial Advanced Technology Attachment (SATA) 6 Gigabytes Per Second (GBPS) Pm893 2.5inch Data Center Internal Solid State Drive
Manufacturer: Samsung
Model Number or SKU# MZ7L3960HCJR-00AMV
Type: Solid State Drive (SSD)
Product Type: SATA 6GBPS
Capacity: 960GB
Encryption Algorithm: 256-bit AES
NAND Flash Memory Type: SAMSUNG V-NAND (TLC)
Form Factor: 2.5 inches
Interface: SATA 6Gb/s
Bytes Per Sector: 512
Data Transfer Rate: 600 Mbps
Width: 100.20 mm
Performance
Drive Writes Per Day (DWPD): 1
SSD Endurance: 1752 TB
Drive Transfer Rate: 600 Mbps (external)
Internal Data Rate: 550 Mbps (read) / 520 Mbps (write)
4KB Random Read: 98,000 IOPS
4KB Random Write: 30,000 IOPS
Power Consumption (Read): 2.1 W
Power Consumption (Write): 3.2 W
Reliability
MTBF: 2,000,000 hours
Non-recoverable Errors: 1 per 10^17
Expansion & Connectivity
Interfaces: 1 x SATA 6Gb/s
Compatible Bay: 2.5 inches
