N7K-F348XP-25= Technical Specifications

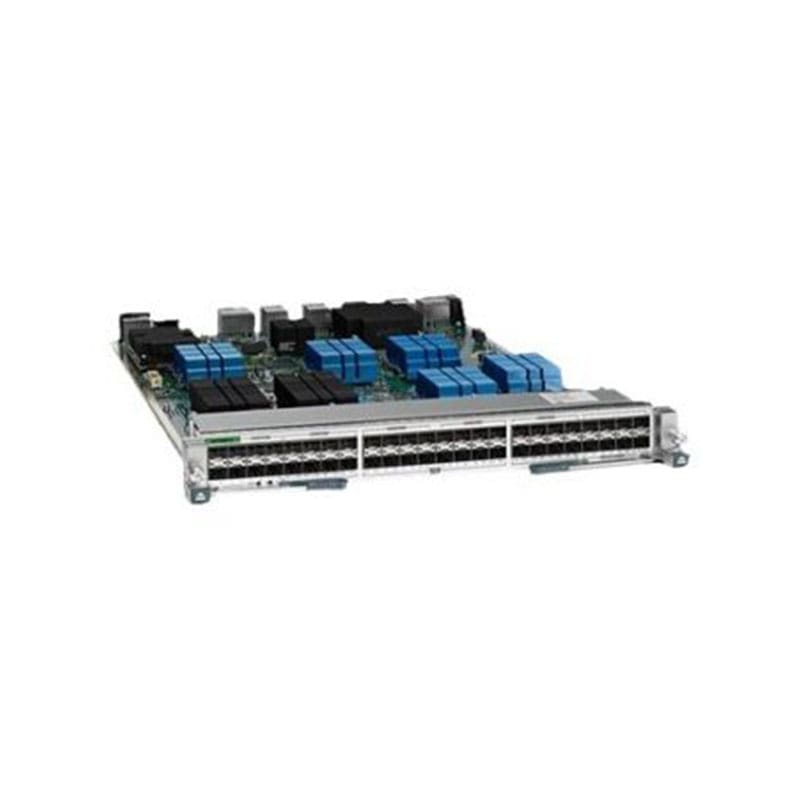

Cisco Nexus 7000 F3-Series 48-Port Fiber 1 and 10G Ethernet Module Expansion module Gigabit Ethernet / 10 Gigabit
Brand: Cisco
Product Line: Cisco Nexus
Model: 7000 F3-Series 48-Port Fiber 1 and 10G Ethernet Module
Manufacturer: Cisco Systems
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Form Factor: Plug-in module
MAC Address Table Size: 64K entries
Product Type: Expansion module
Status Indicators: Link OK, Status, Unit ID
Connectivity
Interface Provided: 48 x 10Gb Ethernet – SFP/SFP+
Port Quantity: 48
Network & Adapter Ports: Gigabit Ethernet / 10 Gigabit SFP+ / SFP (mini-GBIC)
Technical Information
Max Operating Temperature: 40 degree Celsius
Min Operating Temperature: 0 degree Celsius
Operating Humidity: 5 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
PerformanceForwarding performance: 720 Mpps, Throughput: 480 Gbps
Dimensions & Weight
Height: 4.4 centimetre
Weight: 6.8 kilogram
Width: 38.9 centimetre
Depth: 55.6 centimetre
