N7K-M202CF-22L= Technical Specifications

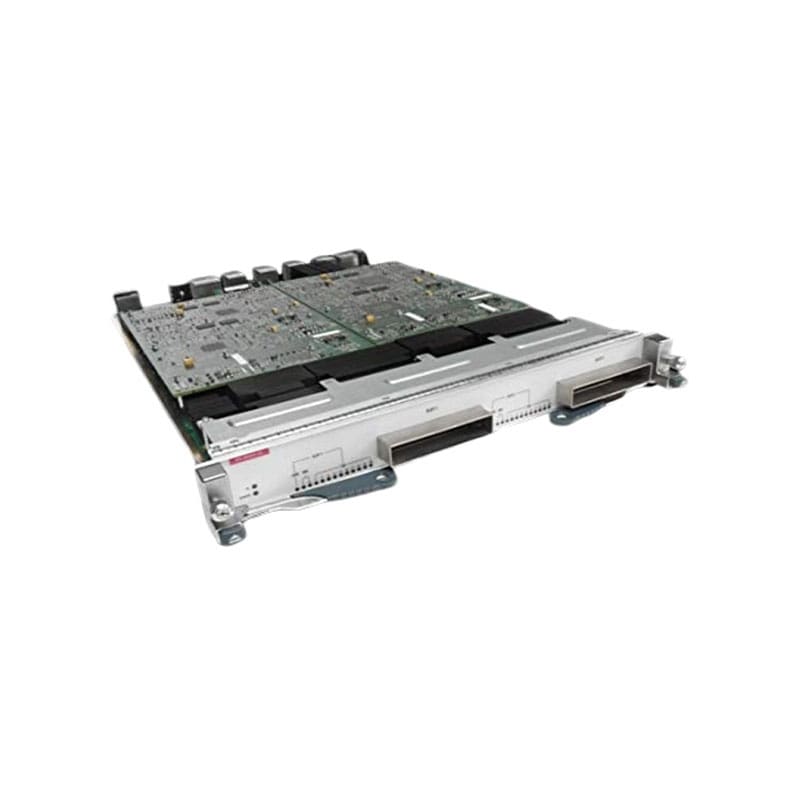

Cisco Nexus 7000 M2-Series 2-Port 100 Gigabit Ethernet Module with XL Option switch 2 ports plug-in module
Brand: Cisco
Product Line: Cisco Nexus
Model: 7000 M2-Series 2-Port 100 Gigabit Ethernet Module with XL Option
Manufacturer: CISCO DS HARDWARE DIRECT
Memory
RAM Installed: 2 GB
Network & Communication
Form Factor (Hubs & Switches): Plug-in module
MAC Address Table Size: 128K entries
Ports: 2
Product Type: Switch
Subcategory: Network hubs and switches
Switching Type: 100 Gigabit Ethernet
Connectivity
Interface Provided: 2 x 100Gb Ethernet – CFP
Port Quantity: 2
Port Type: CFP
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 1.7 inch
Weight: 16.98 lbs
Width: 15.3 inch
Depth: 21.9 inch
