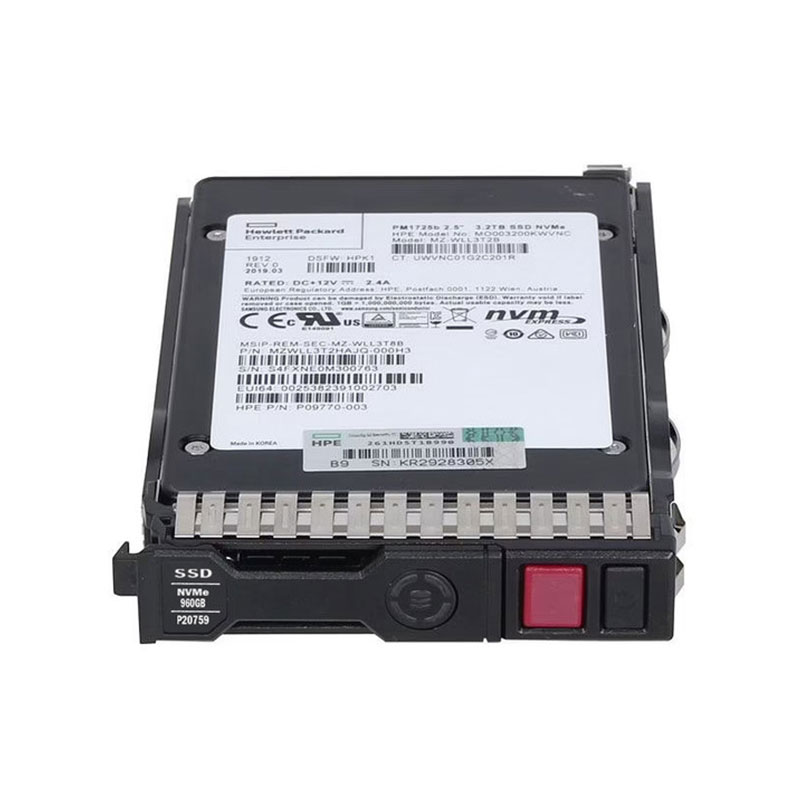

P20015-H21 HPE 960GB 2.5inch NVMe PCIe SC Read Intensive G8 G9 G10
P20015-H21 Overview
The HPE P20015-H21 960GB 2.5-inch Small Form Factor (SFF) NVMe U.3 PCIe Read Intensive Solid State Drive (SSD) with Smart Carrier is a high-performance enterprise storage solution designed for HPE ProLiant Gen10 Plus and Gen11 servers. Utilizing the PCIe 4.0 x4 NVMe interface, it delivers ultra-fast data access, low latency, and superior IOPS, making it ideal for read-intensive workloads such as virtualization, cloud applications, database operations, and analytics.
With a 960GB capacity, the drive offers a balance of performance and storage density. The Small Form Factor (SFF) U.3 design ensures compatibility with modern HPE server architectures, while the Smart Carrier (SC) provides LED indicators for drive activity and health monitoring, simplifying deployment and system management.
P20015-H21 Technical Specifications
HPE P20015-H21 960GB 2.5inch Small Form Factor (SFF) NVMe U.3 PCIe Smart Carrier Read Intensive Solid State Drive
Brand: HPE
MPN: P20015-H21
General
Device Type: Solid State Drive – Hot-Swap
Capacity: 960GB
Form Factor: 2.5 inch SFF
Interface: NVMe U.3 PCIe
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Read Intensive
Bundled with: HPE Smart Carrier NVMe (SCN)
Height: 15.00 mm (0.60 inch)
Performance
Endurance DWPD (Drive Writes Per Day): 1
Random Read IOPS (4KiB, Q=16): 175000
Random Write IOPS (4KiB, Q=16): 50000
MAX Random Read IOPS (4KiB): 880000@Q256
MAX Random Write IOPS (4KiB): 50000@Q32
Expansion & Connectivity
Interfaces: 1 x PCIe NVMe
Compatible Bay: 2.5″ SFF
Power Consumption
Maximum Power: 9 Watts
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)
