PRIME Q370M-C/CSM ASUS Business Motherboard

PRIME Q370M-C/CSM Overview

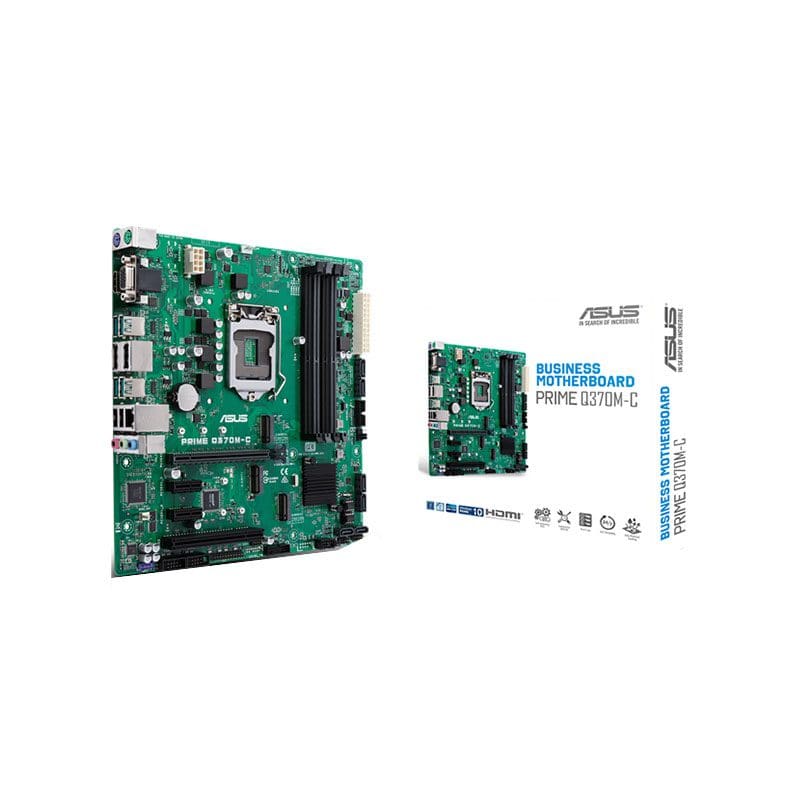

PRIME Q370M-C/CSM ASUS Business Motherboard

$150

Buy Now
Availability: In Stock
SKU:PRIME Q370M-C/CSM
Brand:

PRIME Q370M-C/CSM Technical Specifications

ASUS Business Motherboard

CPU
Chipset Intel Q370
CPU Socket LGA 1151
Back Panel I/O
USB 4 x USB 3.1 Gen 2 Type-A
2 x USB 2.0 Type-A
Thunderbolt None
Display 2 x DisplayPort
1 x HDMI
1 x VGA
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Intel I219LM Gigabit LAN
PS/2 2 x PS/2
Wi-Fi Antenna 1 x Connector
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666 MHz
Maximum Capacity 64 GB
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe (Unspecified))
1 x E Key
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10 (M.2)
Internal I/O
Expansion Slots 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
1 x PCI
USB 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Power Connectors 1 x 8-Pin CPU
1 x 24-Pin Mainboard
Security Chassis Intrusion, TPM Module
Audio 3 x Speaker
