Refurbished QFX5100-48T-AFI Juniper Networks QFX Series

Refurbished QFX5100-48T-AFI Overview

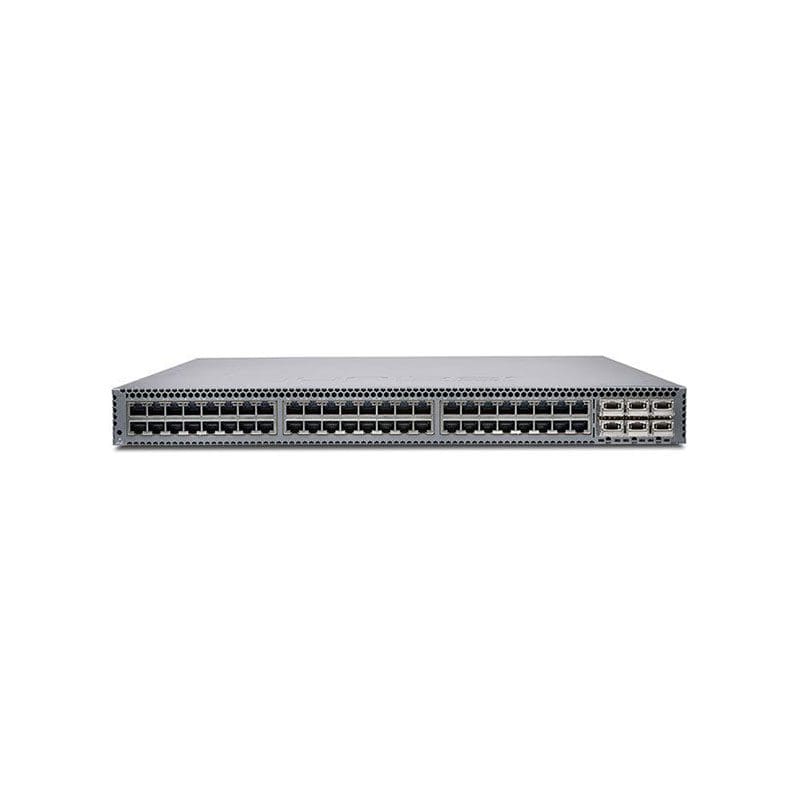

QFX5100-48T-AFI Juniper Networks QFX Series QFX5100-48T switch 48 ports managed rack mountable.The QFX5100-48T offers 48 RJ-45-based 10GbE ports and up to six 40GbE ports for providing uplinks to aggregation switches. Each RJ-45 port can operate in three different speeds, providing connectivity using the same shielded twisted pair copper cables.

$5,930

Buy Now
Availability: In Stock
SKU:QFX5100-48T-AFI-RF
Brand:

Refurbished QFX5100-48T-AFI Technical Specifications

Juniper Networks QFX Series QFX5100-48T switch 48 ports managed rack mountable

    • Netscreen
    • Juniper, Juniper Networks
    • Juniper Networks QFX Series
    • QFX5100-48T
    • 1
  • Chassis

    • Back to front airflow
    • 32 GB SSD
  • Processor

    • 1
    • Intel
    • 1.5 GHZ
  • RAM

    • 8 GB
  • Performance

    • Switching capacity: 1.44 Tbps, Switching capacity: 1.08 Bpps
  • Capacity

    • IPv4 hosts: 208000, IPv4 routes (Unicast): 128000, VLAN Spanning Tree Protocol instances: 253, IPv6 routes (Unicast): 64000, IPv6 routes (Multicast): 52000, Multiple Spanning Tree Protocol instances: 64, ARP entries: 48000, IPv4 routes (Multicast): 104000, Virtual interfaces (VLANs): 4091
  • Networking

    • Switch
    • Network hubs and switches
    • 10 Gigabit Ethernet
    • Rack-mountable
    • 48
    • FC-BB-5, FC-BB-6
    • Layer 3
    • RIP-2, Bidirectional Forwarding Detection (BFD), ECMP, OSPF, Static IP routing, PIM-SM, IGMPv3, MSDP, VRRP, IGMP, RIP, IGMPv2, CIDR
    • 288K entries
    • 9216 bytes
    • Yes
    • SNMP 1, CLI, SSH, Telnet, SNMP 3, SNMP 2, RMON
    • Management Information Base (MIB), Flow control, Store and forward, RARP support, Weighted Random Early Detection (WRED), FCoE forwarding, sFlow, Low-latency queuing (LLQ), Graceful Route Engine Switchover (GRES), Data Center Bridging Exchange (DCBX) support, Tunneling, Cut-through, Redundant trunk group (RTG), Strict Priority Queuing (SPQ), Data Center Bridging (DCB), Rapid Spanning Tree Protocol (RSTP) support, ARP support, DHCP server, Dynamic ARP Inspection (DAI), Non-Stop Bridging (NSB), DoS attack prevention, SNTP support, High Availability, IPv6 support, IGMP snooping, Redundant hot swappable fans, Access Control List (ACL) support, BOOTP support, Loop prevention, Trunking, DHCP relay, Non-Stop Routing (NSR), MAC address filtering, Class of Service (CoS), DHCP snooping, IPv4 support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), VPN support, Trivial File Transfer Protocol (TFTP) support, VLAN Spanning Tree Protocol (VSTP), VLAN support, Back to front airflow, Spanning Tree Protocol (STP) support, 12 MB shared buffer
    • IEEE 802.1Qau, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1Qbb, Shaped Deficit Weighted Round-Robin (SDWRR), IEEE 802.1Qbg, IEEE 802.1Qaz, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1Q, IEEE 802.1s
  • Ports

    • 48
    • 100/1000/10000
  • Ports (2nd)

    • 6
    • 40 Gigabit QSFP+ (breakout compatible)
  • Interface Provided

    • 1 x USB management, 6 x QSFP+ (breakout compatible), 1 x SFP management, 1 x RJ-45 management, 48 x 10GBase-T RJ-45, 1 x console management
  • Power Device

    • Internal power supply
    • Hot-plug
    • Yes
    • 1+1
    • 2
    • 2
    • AC 120/230 V
    • 335 watt
    • 80 PLUS
  • System Requirements

    • JUNOS
  • Miscellaneous

    • 1
    • AES, MD5
    • Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS, TACACS+
    • REACH, GR-1089-CORE, UL 60950-1, NEBS level 3, VCCI Class A, WEEE, CAN/CSA C22.2 No. 60950-1, FCC CFR47 Part 15, BSMI CNS 13438, EN55022 Class A, IEC 60950-1, RoHS 6/6, AS/NZS CISPR 22, EN 60825-1, NCC, EN 60950-1, GR-63-CORE, China RoHS, CAN/CSA-C22.2 No. 60950-1
  • Dimensions & Weight

    • 17.4 inch
    • 21.5 inch
    • 1.7 inch
    • 24.69 lbs
  • Environmental Parameters

    • 32 degree Fahrenheit
    • 104 degree Fahrenheit
    • -40 degree Fahrenheit
    • 158 degree Fahrenheit
    • 5 – 90% (non-condensing)
    • 0 – 95% (non-condensing)
