R0X24C Technical Specifications

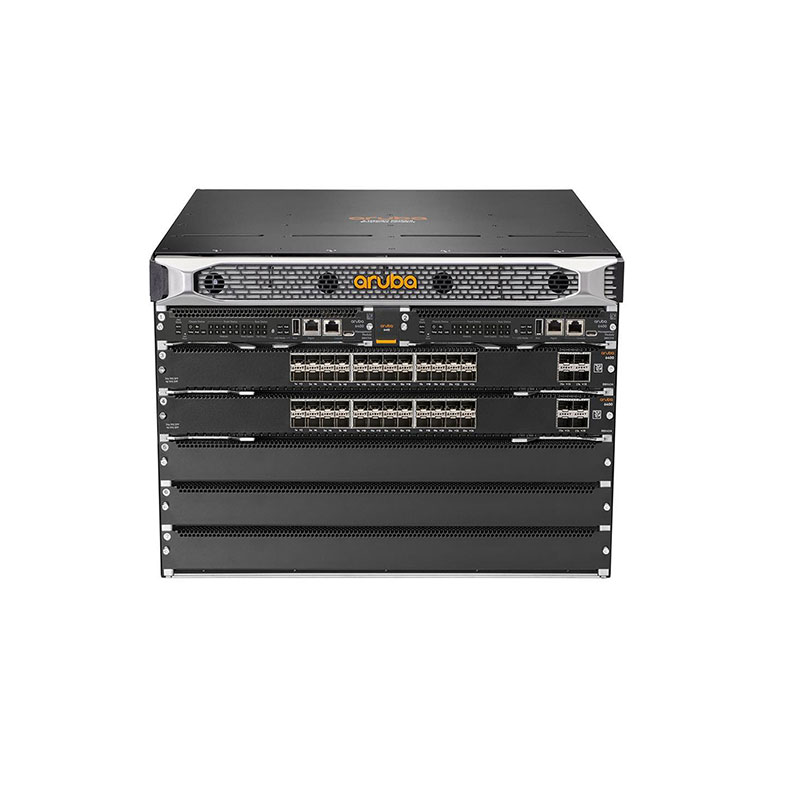

HPE Aruba CX 6400 6405 7-Slots Expansion Switch Chassis
Manufacturer Part Number: R0X24C
Brand Name: HPE Aruba
Product Line: Aruba CX 6400 Series
Product Type: Modular Switch Chassis
Chassis Slots: 7 (supports supervisor, line cards, and fabric modules)
Management Module Slots: 2 (for redundancy)
Line Card Slots: 5 (supporting 1GbE, 10GbE, 25GbE, 40GbE, 100GbE modules)
Switching Capacity: Up to 28 Tbps (with full configuration)
Forwarding Rate: Up to 8.3 Bpps
Layer Support: Layer 2 / Layer 3 / Layer 4
MAC Address Table: 512,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static & Dynamic IPv4/IPv6, OSPF, BGP, VRF, EVPN-VXLAN, MPLS
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
