TS64GMSA452T Technical Specifications

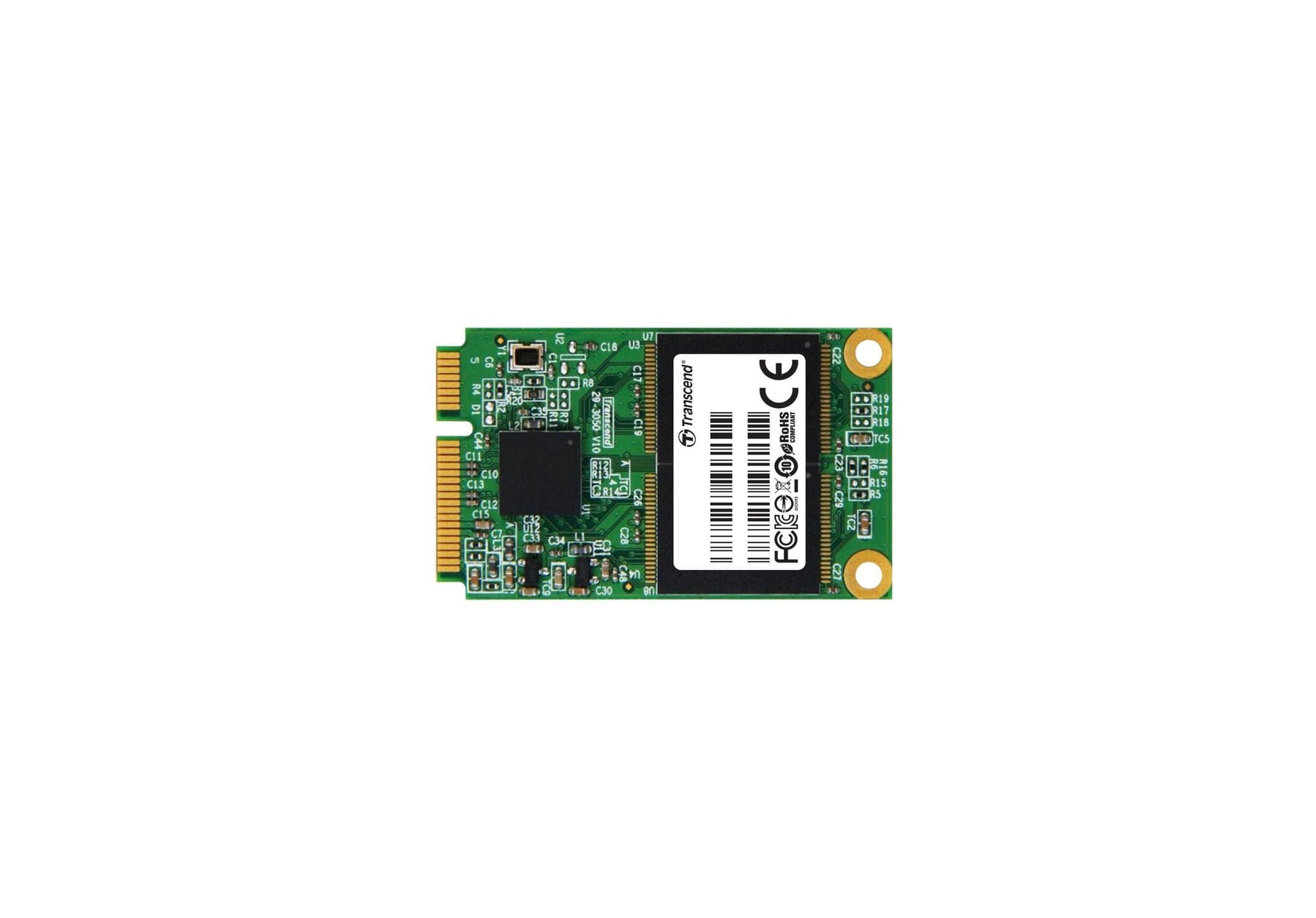

Transcend MSA452T solid state drive 64GB SATA 6Gb/s
Manufacturer :TRANSCEND
Brand :Transcend
Product Line :Transcend
Model :MSA452T
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :mSATA
Form Factor (metric) :mSATA
Form Factor (Short) :mSATA
Form Factor (Short) (metric) :mSATA
Storage Interface :Serial ATA-600
Interface :Serial ATA-600
Capacity :64 GB
NAND Flash Memory Type :3D triple-level cell (TLC)
Data Transfer Rate :600 MBps
Internal Data Rate :560 MBps
Internal Data Rate (Write) :520 MBps
Maximum 4KB Random Read :95000 IOPS
Maximum 4KB Random Write :85000 IOPS
Drive Writes Per Day (DWPD) :1.61
SSD Endurance :1760 TB
Features :Advanced Garbage Collection, Advanced Global Wear Leveling, Block management, Device Sleep support, DevSleep mode, DRAM cache, Error Correction Code (ECC), Power Saving Mode, Security Command support
Compliant Standards :JEDEC MO-300, S.M.A.R.T.
Interface Provided
Interfaces :1 x SATA 6 Gb/s – 52 pin mini-SATA
Bay Required
Compatible Bay :mSATA
Power Consumption
Power Consumption :0.4 Watt (sleep), 2.4 Watt (active)
Miscellaneous
MTBF :2,000,000 Hours
Compliant Standards :BSMI, FCC, RoHS2
Dimensions & Weight
Width :1.2 inch
Depth :2 inch
Height :0.2 inch
Weight :0.28 ounce
