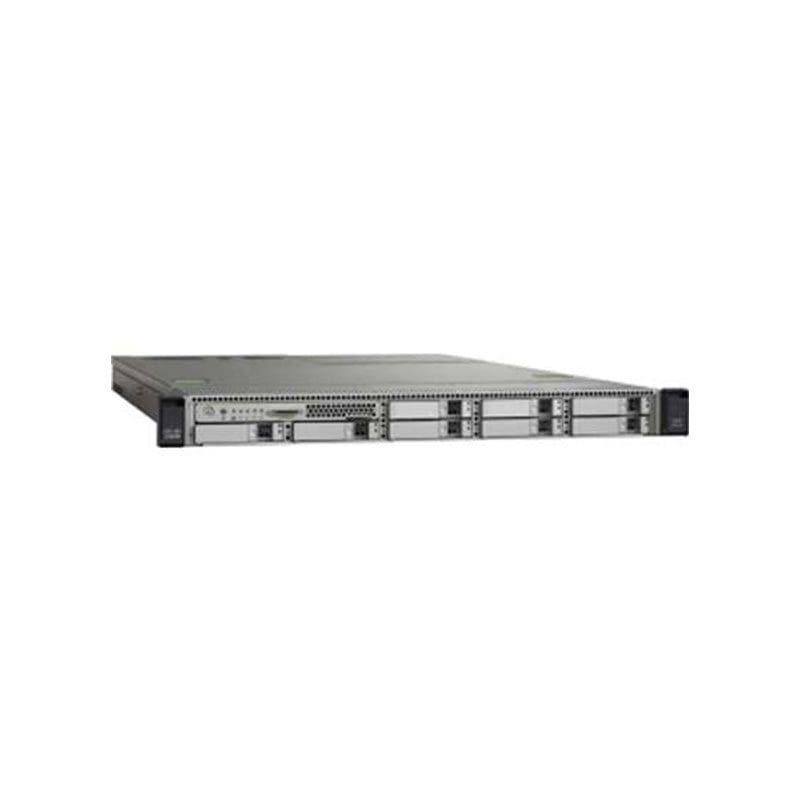

UCSC-DBUN-C220-107 Cisco Systems Ucs C220 M3 SFF 2X8GB

UCSC-DBUN-C220-107 Overview

The Cisco® Unified Computing System™ (Cisco UCS) combines Cisco UCS C-Series Rack Servers and B-Series Blade Servers with networking and storage access into a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest expansion of the Cisco UCS portfolio includes the new Cisco® UCS C220 M3 Rack Server (one rack unit [1RU]) and Cisco UCS C240 M3 Rack Server (2RU) and the Cisco UCS B200 M3 Blade Server. These three new servers increase compute density through more cores and cache balanced with more memory capacity, disk drives and with faster I/O. Together these server improvements and complementary Cisco UCS advancements deliver the best combination of features and cost efficiency required to support IT’s diverse server needs.

$5,849

Buy Now
Availability: In Stock
SKU:UCSC-DBUN-C220-107
Brand:

UCSC-DBUN-C220-107 Technical Specifications

Cisco Systems Ucs C220 M3 SFF 2X8GB

General Information
Product Name Cisco Ucs C220 M3 SFF 2X8GB 2XE5-2690 9266CV 2X650W SD Rails
Manufacturer Part Number UCSC-DBUN-C220-107
Product Series C220 M3
Product Type Server
Controllers
Controller Type Serial ATA/600
6Gb/s SAS (SATA/SAS)
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60
Memory
Standard Memory 16 GB
Memory Technology DDR3 SDRAM
Number of Total Memory 16 DDR3 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 650 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2690
Processor Core Octa-core (8 Core)
Processor Speed 2.90 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 16.9″
Depth 28.5″
Other Information
Product Family C220 M3
Cache 20 MB
Memory Card Reader Yes
64-bit Processing Yes
Quick Path Interconnect 8 GT/s
Hyper-Threading Yes
Number of Total Expansion Slots 2
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 1
VGA Yes
Network (RJ-45) Yes
Remote Management Yes
Total Number of USB Ports 5
Number of USB 2.0 Ports 2
Memory Card Supported SD
Memory Standard DDR3-1600/PC3-12800
