UCSC-EZ-C240-108 Technical Specifications

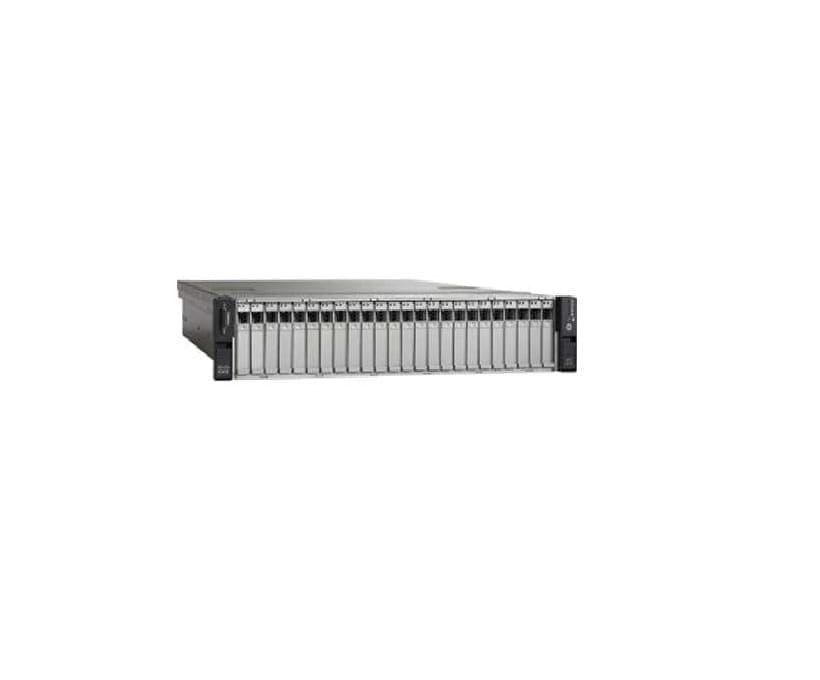

Cisco Systems Ucs C240 M3 SFF 2XE5-2690
General Information
Product Name Ucs C240 M3 SFF 2XE5-2690 2X8GB 9266CV 2X650W SD Rails Expdr
Manufacturer Part Number UCSC-EZ-C240-108
Product Series C240 M3
Product Type Server
Controllers
Controller Type Serial SATA
Serial Attached SCSI (SAS)
Cisco UCS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60
I/O Expansions
Number of Total Expansion 24 Bays
Number of Internal 2.5″ Bays 24
Memory
Standard Memory 16 GB
Maximum Memory 384 GB
Memory Technology DDR3 SDRAM
Number of Total Memory Slots 24
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 650 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2690
Processor Core Octa-core (8 Core)
Processor Speed 2.90 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 17.5″
Depth 28″
