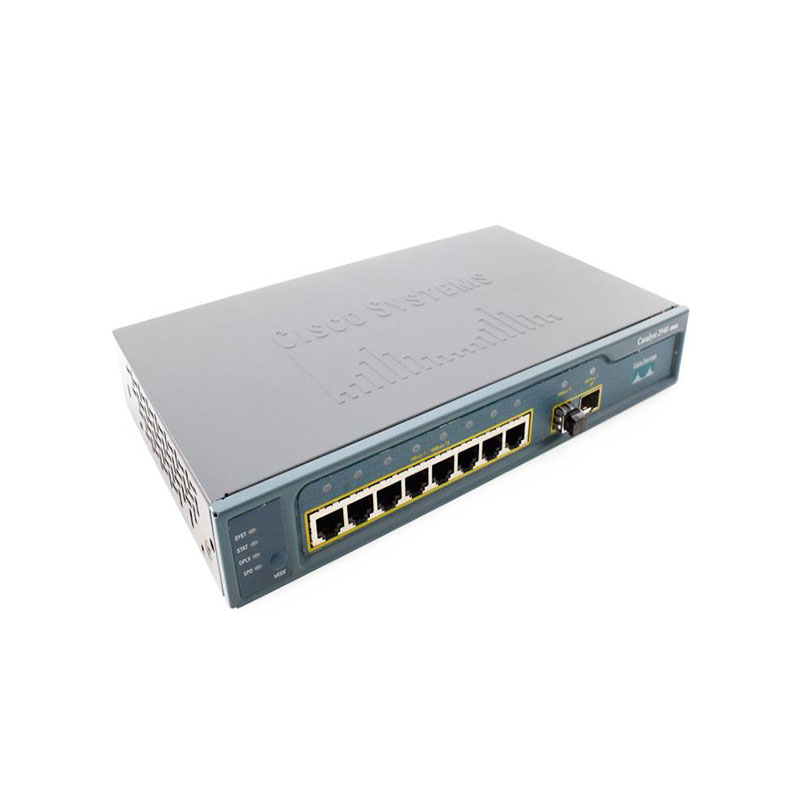

WS-C2940-8TF-S Cisco Catalyst 2940 Series 8-Ports RJ-45 100Mbps 10Base-T/100Base-TX Fast Ethernet Switch
WS-C2940-8TF-S Overview
The Cisco Catalyst WS-C2940-8TF-S is a compact Fast Ethernet switch from the Catalyst 2940 Series, designed for small to medium-sized network deployments requiring reliable Layer 2 connectivity. It features 8 RJ-45 10/100Base-TX ports, supporting standard Fast Ethernet speeds for workstations, printers, and other network devices.This switch also includes 1 MT-RJ SFP port and 1 100Base-FX fiber port, enabling flexible uplink options to connect to other switches, servers, or network segments over fiber for extended distance and enhanced reliability.As a managed Layer 2 switch, the WS-C2940-8TF-S provides VLAN support, Spanning Tree Protocol (STP), and port-based security, allowing for network segmentation, loop prevention, and controlled access. It is suitable for rack or desktop deployment, offering ease of integration into existing network infrastructures.
WS-C2940-8TF-S Technical Specifications
Cisco Catalyst 2940 Series 8-Ports RJ-45 100Mbps 10Base-T/100Base-TX Fast Ethernet Switch with 1x MT-RJ SFP and 1x 100Base-FX Ports
Manufacturer Part Number: WS-C2940-8TF-S
Brand Name: Cisco
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Port/Expansion Slot Details: 8 x Fast Ethernet Network,1 x Fast Ethernet Uplink,1 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Fast Ethernet
Network Technology: 10Base-T,10/100Base-TX,100Base-FX
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Height: 1.6″
Width: 10.6″
Depth: 6.4″
