WS-C6506-1000AC Technical Specifications

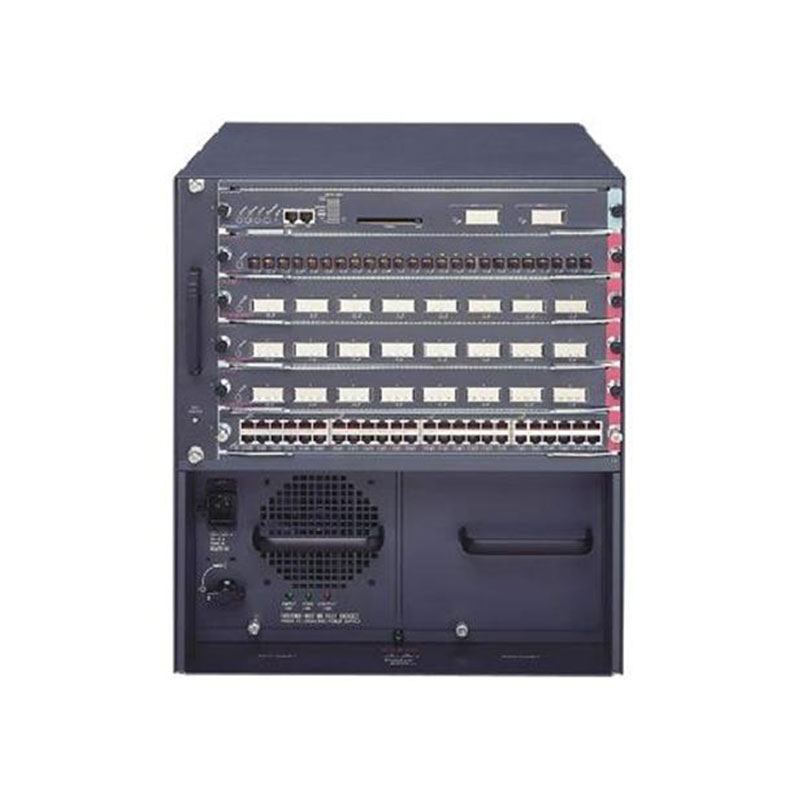

Cisco Catalyst 6506 With 1000 W Power Switch
Manufacturer: Cisco
Manufacturer Part Number: WS-C6506-1000AC
Type: Catalyst 6500 Series Switch Chassis
Slots: 6 expansion slots
Supervisor Engine: Supported (optional)
Line Cards: Supports multiple Gigabit / 10 Gigabit modules
Ports: Depends on installed line cards
Power Supply: 1000W AC
Redundant Power: Supported
Cooling: Fan tray supported
Form Factor: Rack-mountable
Height: 11U
Width: 17.5 in
Depth: 15.75 in
Weight: Approx. 40 lbs (empty)
Layer Support: Layer 2 / Layer 3 (with supervisor)
Switch Fabric: Up to 32 Gbps (depends on supervisor)
Forwarding Rate: Module dependent
VLAN Support: IEEE 802.1Q
QoS: Supported
Security: ACLs, port security (with supervisor)
Management: CLI, SNMP, web (via supervisor)
Stacking: Not supported
