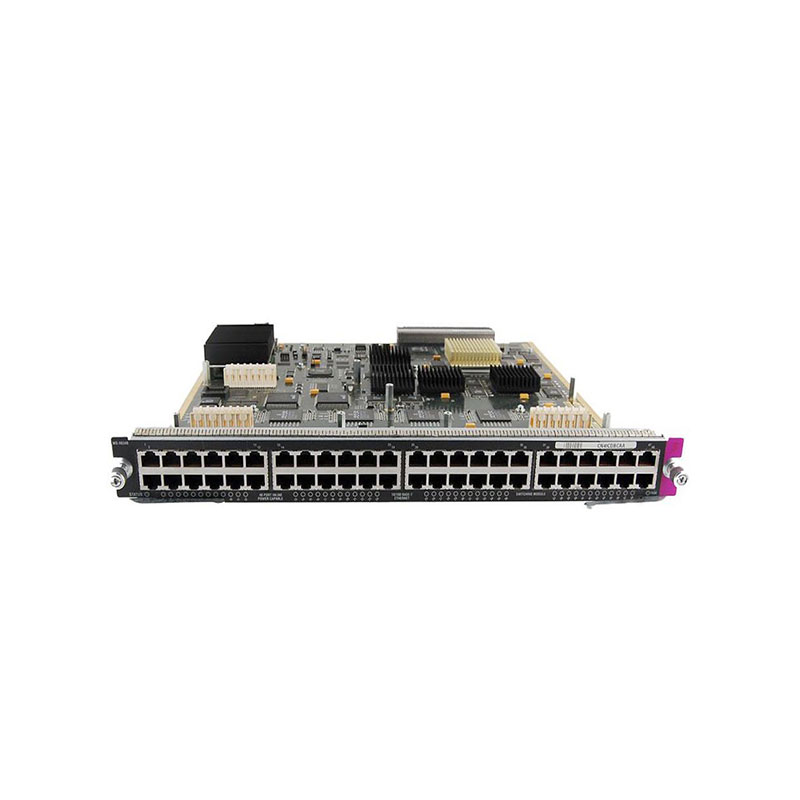

WS-X6348-RJ45 Technical Specifications
Cisco Catalyst 6000 48-Port 10 / 100BTX RJ45 Ethernet
Manufacturer: Cisco
Manufacturer Part Number: WS-X6348-RJ45
Type: Catalyst 6000 Fast Ethernet Switching Module
Ports: 48 x 10/100Base-TX RJ-45
Layer: Layer 2 / Layer 3 switching
Management: Through Catalyst 6000/6500 supervisor
VLAN: IEEE 802.1Q VLAN tagging supported
QoS: Hardware-based traffic prioritization
Security: ACLs, port security, 802.1x authentication
Switching Capacity: Dependent on chassis and supervisor engine
Forwarding Rate: Based on supervisor performance
Jumbo Frames: Supported (up to 9216 bytes)
Hot Swap: Yes, Online Insertion and Removal (OIR)
Chassis Support: Cisco Catalyst 6000 / 6500 Series
Form Factor: Line card module (occupies 1 slot)
LEDs: Link, activity, and module status indicators
Redundant Power: Supported via chassis power system
Cooling: Chassis-based airflow
STP: STP, RSTP, MSTP supported
