ZP480NM30011 Technical Specifications

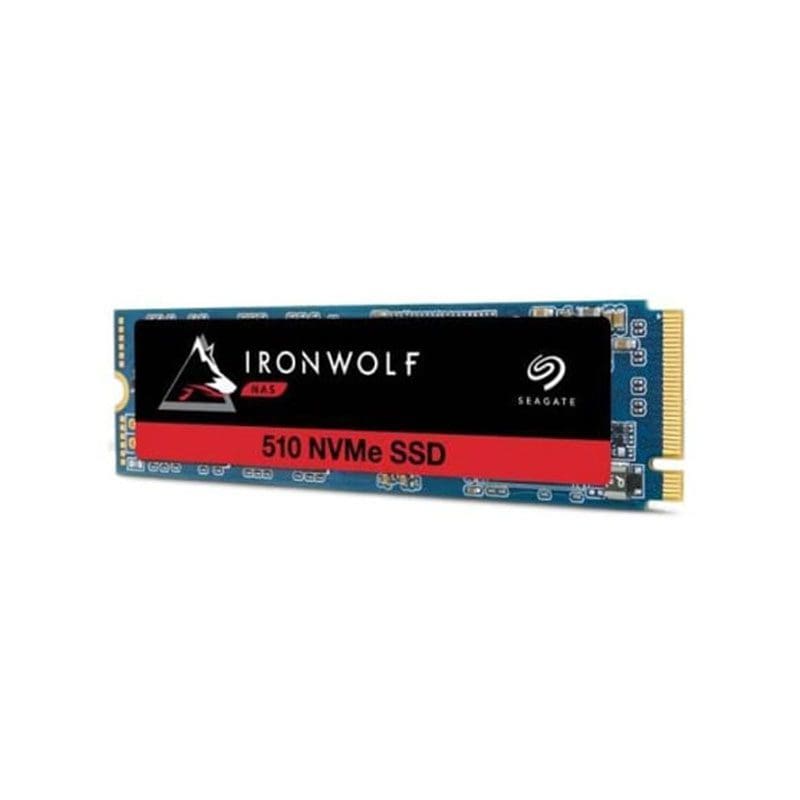

Seagate IronWolf 510 solid state drive 480GB PCI Express
Manufacturer :Seagate Technology
Brand :Seagate
Product Line :Seagate IronWolf 510
Model :ZP480NM30011
Bundled with :2 years Seagate Rescue Data Recovery
Country Kits :Worldwide
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :M.2 2280
Form Factor (metric) :M.2 2280
Form Factor (Short) :M.2
Form Factor (Short) (metric) :M.2
Storage Interface :PCI Express 3.0 x4 (NVMe)
Interface :PCI Express 3.0 x4 (NVMe)
Capacity :480 GB
NAND Flash Memory Type :3D triple-level cell (TLC)
Internal Data Rate :2650 MBps
Internal Data Rate (Write) :600 MBps
4KB Random Read :193000 IOPS
4KB Random Write :20000 IOPS
Non-Recoverable Errors :1 per 10^16
Drive Writes Per Day (DWPD) :1
SSD Endurance :875 TB
24×7 Operation :Yes
Features :24×7 availability, NVM Express (NVMe) 1.3
Interface Provided
Interfaces :1 x PCI Express 3.0 x4 (NVMe) – M.2 Card
Bay Required
Compatible Bay :M.2 2280
Power Consumption
Power Consumption :1.83 Watt (idle), 6 Watt (active)
System Requirements
OS Required :Linux, Windows 8.1 / 10
Miscellaneous
MTBF :1,800,000 Hours
Dimensions & Weight
Width :0.9 inch
Depth :3.2 inch
Height :0.1 inch
Weight :0.24 ounce
Dimensions & Weight (Shipping)
Shipping Width :4.3 inch
Shipping Depth :0.9 inch
Shipping Height :6.1 inch
Shipping Weight :2.19 ounce
