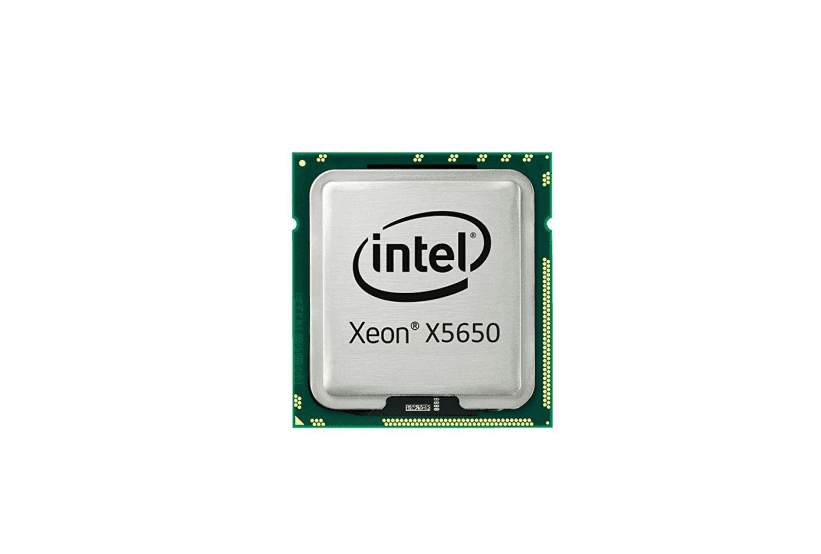

0R6Y8V Technical Specifications
Dell Intel Xeon Hexa Core X5650 2.66GHz 1.5MB L2 Cache 12MB L3 Cache 6.4gt/S Qpi Speed Socket Fclga-1366 32NM 95W Processor
General information :
Product type : server processor
Product manufacturer : dell
Manufacturer part number : 0r6y8v
Product model : x5650
Technical information :
Processor core : hexa-core
Clock speed : 2.66 GHz
Max turbo frequency : 3.06 GHz
Quickpath interconnect(qpi) speed : 6.4 gt/s
Cache memory detail :
• l1 cache : 384 kb
• l2 cache : 1.5 MB
• l3 cache : 12 MB
Lithography : 32 nm
Max thermal design power (tdp) : 95 w
Compatible processor socket : fclga-1366
Advanced technologies :
• turbo boost technology
• virtualization technology
• hyper-threading technology
• extended memory 64 technology
• enhanced speedstep technology
• trusted execution technology
Additional information :
• demand based switching
• aes new instructions
• execute disable bit
• idle states
Environmental conditions :
• thermal specification : 178.3°f (81.3°c)
