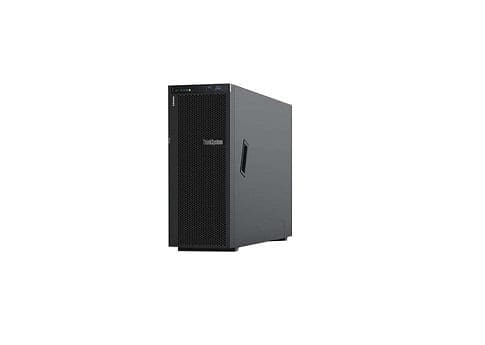

70B7002RUX Technical Specification
Lenovo Think Server Td340 1x Intel Xeon
General Information
Manufacturer : Lenovo
Type: Server Processor & Chipset
Processor Type : Intel Xeon E5-2420 V2/ 2.2GHz
Max Turbo Speed : 2.7 GHz
Number Of Cores : 6-Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Processor Main Features : Intel Turbo Boost Technology 2
Cache Memory:
Installed Size : 15 Mb
Cache Per Processor : 15 Mb
Memory:
Installed Size : 8 Gb
Maximum Size : 192 Gb
Technology : Ddr3 Sdram
Memory Speed : 1600 Mhz
Form Factor : Dimm 240-Pin
Features : Registered, Low-Voltage
Configuration Features : 1 X 8 Gb
Storage & Storage Controller
Hard Drive : None
Optical Drive Type : Dvd-Writer
Storage Controller Type : 1 X Sas – Integrated
Controller Interface Type : Sata 6gb/S / Sas 6gb/S
Storage Controller Name : Think server Raid 300
Raid Level : Raid 0, Raid 1, Raid 10
Display & Graphics Controllers
Graphics Controller Type : Integrated
Video Interfaces : Vga
Network & Communication
Networking : Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
